10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter
10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter
10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter
10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter
Specifications
Brand Name :
DYS/OEM
Model Number :
DYS-GAS-2 Media Converter
Certification :
RoHS, ISO9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Port type :
Fiber optic Media Converter
Data rate :
10/100/1000M
Fiber type :
Single mode/multi mode
Power type :
Internal/External power
Waranty :
2 years
Description

Description:

DYS-GAS-2 Fiber Converter has two SFP sockets. It can convert two optical digital signals of SFP modules, which have same speed, among different wavelength, different distance and different mode (singlemoed/multimode, UTP/Fiber). It is popular application in all kind of optical digital signals, like Ethernet signals, ATM signals, SDH signals, and control signals etc.

Features:

♦Conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode fibers, or between single/single mode fibers when the both SFP modules have same speed. 

♦Supporting conversion of 2～1250Mbps optical digital signals. 

♦Conversion speed fast, less delay, high efficiency 

♦Interfaces: SFP sockets. 

♦Transmission Rate: 2～2.5Gbps 

♦Power : External or Internal switching power: AC100～240V/DC5V 

♦LED Lights: 

♦Power: status of power supply 

♦FX1 Link, FX2 Link: SFP connection indicator, for machine control and trouble adjusting

♦Ambient temperature:0 ～ +50℃
♦Storage temperature:-20 ～ +70℃
♦Humidity:5% ～ 90%

Technical Specifications

Product Name 2 Sockets SFP Fiber Converte
Product Model DYS-GAS-2
Connector 2*Fiber Port:100M or1000M SFP
Fiber Media

Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode Forward
Forwarding Rate:

100M:148800pps/port

1000M:1488000pps/port
Operating standard EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab
Power External

Input:AC 100~250VOutput:DC 5V 1A ,(default)

Input:DC:-36V~-72V；Output:DC 5V 1A (Optional)
Power consumption 2.5W
LED Power,P1( FX1-Link/Act), P2(FX2- Link/Act).
Working Environment

Working temperature: -10～55℃ ;

Storage temperature: -20～75℃

Relative Humidity: 5%~95 %( no condensation)

Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List

1× Media Converter

1×User Manual/Certificate of quality/Warranty card

1×power adapter
MTBF 100,000 hours
Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H): 94.5*71*26mm

Packing size(L×W×H): 215*138*56mm
Warranty 1-years

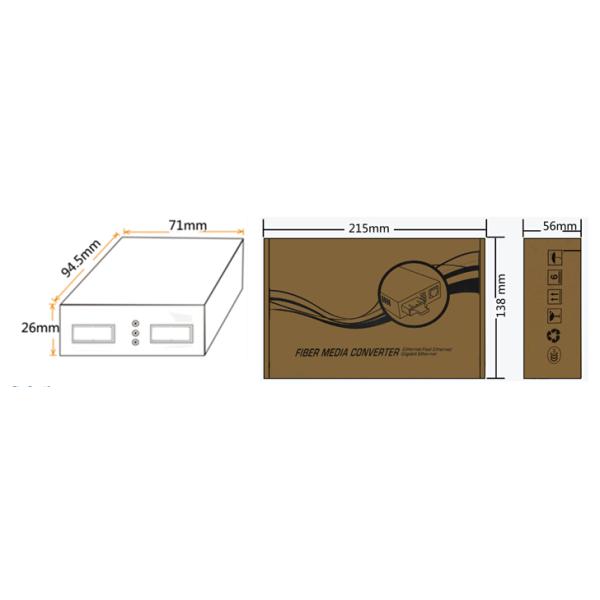

Chassis Dimension:

10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter

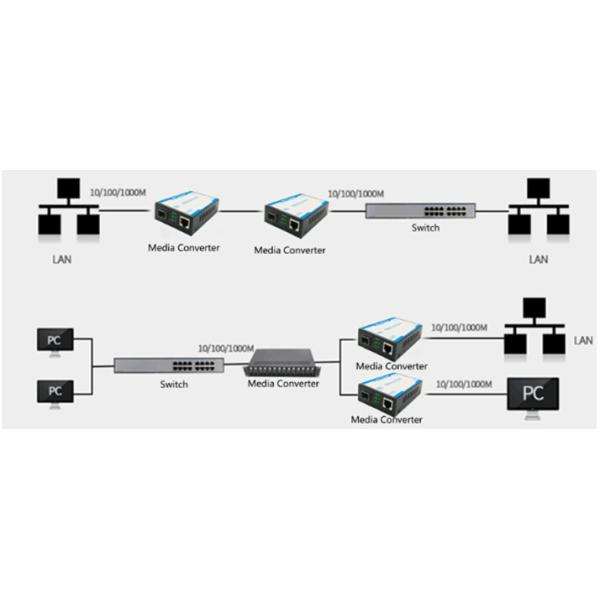

Solutions:

10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter

Power Supply Standard:

10/100/1000M SFP LC SC Fast Gigabit Fiber Optic Media Converter DYS-GAS-2 Media Converter

Ordering Information:

Product Model Product description
DYS-GAS-2 SFP-SFP slot Media Converter,work as Multi-mode-Single mode converter or as a repeator., without SFP module,external PS
SFP Module Opition SFP Transceiver 155M-2.5G double fiber/single fiber 0-120KM
