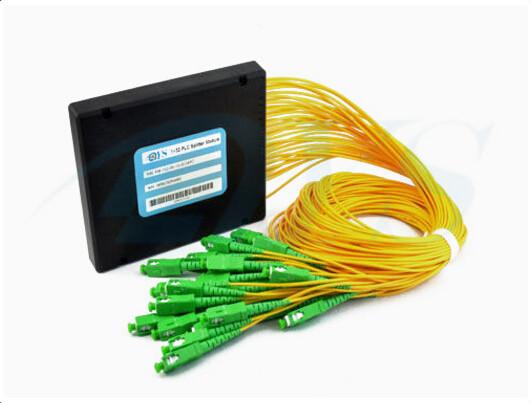

Custom SC / APC Multimode Fiber Splitter , 1x32 Fiber Splitter With 3.0mm Cable
Custom SC / APC Multimode Fiber Splitter , 1x32 Fiber Splitter With 3.0mm Cable
Specifications
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
1*32 Fiber Optic PLC with 3.0mm cable
MOQ :
Negotiable
Packaging Details :
6pcs in 1 packign or Customized
Delivery Time :
2days
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Mode :
Single-mode or Multi-mode
Insert loss :
0.2dB
Sleeve Materials :
Zro2,Brass or Nickel
Certificate :
IS09001-2015.ROHS
Feature :
High reliability
Application :
FTTx Systems
Price :
Negotiable
Description

SC/APC 1*32 PLC Optical Fiber Splitter with 3.0mm cable

Quick Details

Brand Name: DYS

Model Number:SC/APC

Insertion Loss≤0.5 dB

Return Loss(dB):APC:60

Operating Temperature(°C):-40~85

Specification:

Type 1×2 1×4 1×8 1×16 1×32 1×64
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
(P/S)Max 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss Uniformity(dB) Max 0.6 0.6 0.8 1.2 1.5 2.5
Polariation Dependent Loss(dB) Max 0.15 0.15 0.25 0.3 0.3 0.3
Directivity(dB) Min 55
Return Loss(dB) Min UPC:50 APC:60
Operating Temperature(°C) -40~85
Storage Temperature(°C) -40~85
Connector Type FC. SC. ST. LC. MU

Custom SC / APC Multimode Fiber Splitter , 1x32 Fiber Splitter With 3.0mm Cable

Features
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN, WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

Custom SC / APC Multimode Fiber Splitter , 1x32 Fiber Splitter With 3.0mm Cable

Custom SC / APC Multimode Fiber Splitter , 1x32 Fiber Splitter With 3.0mm Cable

１. Incoming quality control:

  • Inspection of all incoming direct and indirect materials;
  • Adopt AQL 0.65 level II sampling plan for incoming material inspections;
  • Conduct sampling plan based on historical quality records;
  • On-site audits of all suppliers.

２. In-process quality control:

  • Real time process control for defective distribution;

  • Statistical process for control defective rates ;

  • Analyze first production quantity and quality to identify and evaluate process trend;

  • Unscheduled production line audit for continuous improvement.

３. Outgoing quality Control:

  • Adopt AQL 0.65 level II sampling plan to audit finished good products to ensure quality level up to specification;

  • Conduct system audit based upon production flow chart;

  • Storage database for all finished good products.

４. Reliability Test:

  • Perform reliability tests according to the quality standard for each product type and customers’ requirements;

  • Typical test processes include: inspect IL, inspect RL, changeability, ferrule end-face, vibration, tensile strength, low/high temperature cycling tests.
