FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
Specifications
Brand Name :
DYS
Model Number :
E2000 APC
Certification :
IS09001-2015.ROHS
Place of Origin :
Shenzhen（China）
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T, D/A, D/P,
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Indivudual Packing or according to customer's request
Product name :
E2000 APC Fiber Optic Connector
Connector Type :
E2000 apc
Color :
Green
boot O.D. :
0.9mm 2.0mm 3.0mm or customerize
Fiber Mode :
Single Mode
Core :
Simplex
Ferrule Type :
APC UPC
cable length :
cutomerized
Application :
FTTH FTTB FTTX Network
Description

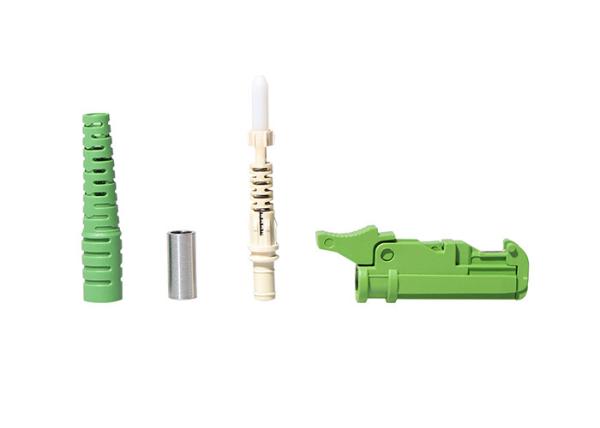

E2000 APC Connector E2000 Fiber Optic Connector E2000 connector

Product Name : E2000 APC Connector E2000 Fiber Optic Connector E2000 connector
Model Connector E2000/2-3/4
1. A end connector E2000 (other connector SC, LC, ST, FC, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available)
2. A end polish PC, UPC, APC.
3. Fiber Type B1.3=G652D; B6A1=G657A1; B6A2=G657A2; A1=50/125um; A1b=62.5/125um; M3=OM3; M5=OM4 etc.
4. Boot Type 1.2mm, 1.6mm, 2.0mm, 3.0mm, 4.0mm etc.
Other further info. Customize

Features :

1. The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2. Different size & color boot option;

3. Low insertion loss; High return loss;

4. 100% interferometer measurement;

5. Typical IL≤0.20dB;

6. Max IL≤0.25dB;

7. RL SM≥50dB, APC≥60dB, MM≥20dB.

8. Durability(500mating time): IL≤0.25dB.

9. Operating / storage temperature:- 20~+70°C

FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss

FTTB Optical Fiber Connectors Lc Simplex Connector Low Insertion Loss
