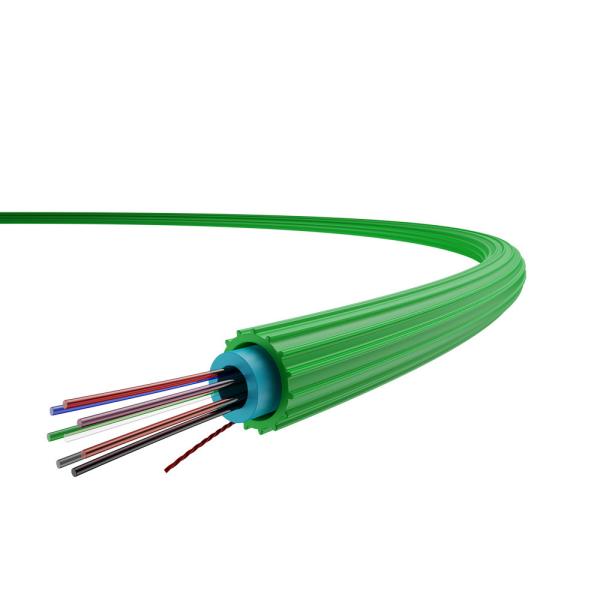

Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties
Specifications
Brand Name :
CFO
Model Number :
Mini Air-blown
Certification :
IS9001:2025
Place of Origin :
shenzhen
Application :
armored outdoor optic fiber cable
Fiber Each Tube :
2-24
Color :
Green
Fiber Specification :
G652D, G657A, OM1, OM2, 0M3, OM4
Forming Way :
Stranded
Life Span :
> 30 Years
Description

Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties


1. Description of Super Mini Air-Bloen Fiber Cable :

Air Blown Mini Cable(MINI)is a small in size, lightweight, enhanced surface outer sheath
fiber unit designed for blowing into microtube bundles by airflow. The outer thermoplastic layer provides a high level of protection and excellent installation properties. It is usually applied in FTTX.



2. Super Mini Air-Bloen Fiber Cable Environment Performance:

Item Testing Method Testing Results
Temperature cycling IEC 60794-1-2-F1 Allowable additional attenuation(1550nm)
G.652B G.652D G.655
≤0.10dB/km, reversible
Water penetration Water column: 1m,1m cable, Period: 24 hours No water leak through the open end of the cable
Filling compound flow 70°C, Period: 24 hours No compound flow from the cable

3. Super Mini Air-Bloen Fiber Cable Mechanic performance:

Item Testing Method Testing Results Specified Value
Tension performance

IEC 60794-1-2-E1

 Optical fibre strain Additional attenuation

Max. Tensile Strength = Short-term Allowable tension

≈2×(Long term Allowable Tension)
Short term:≤0.3％ Long term:≤0.1％

Short term: Da <0.1 dB,

Da reversible；

Long term: Da ≤0.03 dB

Crush

IEC 60794-1-2-E3

Short term: Da <0.10 dB, Da reversible； Long term: Da ≤0.03 dB；

The outer sheath has no visible crack.

 Short-term crushing force =600 N Long-term crushing force =300 N

Repeated bending

IEC 60794-1-2-E6

After the test, Da ≤0.03 dB；

The outer sheath has no visible crack.

 R=20 outer Φ
Bending load =15N
Bending times =25

Torsion

IEC 60794-1-2-E7

After the test, Da ≤0.03 dB；

The outer sheath has no visible crack.

 Torsion angle=±180º
Torsion load =15N
Torsion times =5

Cable bend

IEC 60794-1-2-E11A

After the test, The optical fiber can’t be broken； The outer sheath has no visible crack.

R=20 outer Φ

10Turns

Cycles times =5
All optical testing proceeded at 1550 nm


Super Mini Air-Bloen Fiber Cable Excellent Protection and Installation Properties


4. Features of Super Mini Air-Bloen Fiber Cable :

1. Small Diameter
2. Frees up capital to expand network and client base
3. Network design flexbility
4. 5/3.5mm micro duct suitable
5. Easy to upgrade
6. Greater blowing distance
7. Fiber: G652D,G652D,G657A1,G657A2&multimode fiber available
8. Out Sheath: PE Sheath Material

5. Applications of Super Mini Air-Bloen Fiber Cable :

1. Air blowing installation
2. Underground networks


6. Carefibr Services

Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)

7. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking be as required for printing?
Yes, You have only to give us your marking.
