48Gbps 24 Port Ethernet Switch 10 100 1000Mbps 240V 60Hz With SFP Port
48Gbps 24 Port Ethernet Switch 10 100 1000Mbps 240V 60Hz With SFP Port
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-1024G
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
MAC address :
8K
Each port :
Link/Ack
Stored and forward :
Support
Gigabit SFP port :
2
Bandwidth :
48Gbps
Temperature :
0℃～40℃ (32°F ~104°F)
Input Power :
100-240V,50/60Hz
Dimension :
440mm×180mm×44mm
Description

PoE Ethernet Switch 24 port 10/100/1000Mbps Network Switch with SFP port

Overview

ND1024G,with 24 10/100/1000M auto-negotiation RJ45 port and 2 separate SFP optical fiber module extension slots.

Key features

Support 24 10/100/1000M auto-negotiation RJ45 ports

Support 2 10/100/1000M SFP port

Support IEEE 802.3x Flow Control for Full Duplex and back pressure for half Duplex

Technical Specification

ND-1024G
Standards and Protocols IEEE 802.3,IEEE 802.3U
IEEE 802.3ab,IEEE 802.3x
Ports 10/100/1000M 24
RJ45 ports
Gigabit SFP port 2
Indicators Each port Link/Ack
Each device Power
Features Stored and forward Support
Bandwidth 48Gbps
MAC address 8K
Operating Environment

Operating Temperature:0℃～40℃ (32°F ~104°F)

Storage Temperature:-40℃～70℃(-40°F~158°F)

Operating Humidity:10%～90% RH( non-condensing)

Storage Humidity:5%～90% RH (no-condensing)
Input Power 100-240V,50/60Hz
Demersions(L×W×H) 440mm×180mm×44mm

User Guide:

Check the Network switch

Please check the enclosure,RJ45 ports,LED indicators ,sure they are ok.

Connect the Network switch with power,make sure the initialization of Network switch is available as below:

POW indicator is off at the beginning when power connected

POW indicator is on and keeps

Other indicators will be on ,then off after one or two seconds

2.Connection cables:

①　Connected the Switch to Computer or other PD( like IP camera, wireless AP) by CAT5 or 6 cables

②　Connected the external power adapter to Switch and the power cord to AC plug

③　Turn on the switch

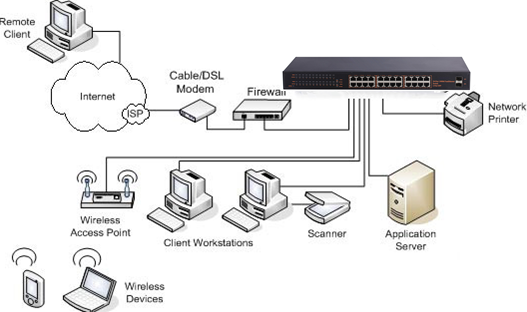

Installation

48Gbps 24 Port Ethernet Switch 10 100 1000Mbps 240V 60Hz With SFP Port

LED Indicator:

Name Status Indication

Power

 On (Green) The Switch is powered on.
Off The Switch is powered off.

Link

On (Yellow)

 PD is connected correct and a valid link is established on the port.

Off

 No PD is connected to the corresponding port or cable connect incorrect or the CAT5 cables damaged
ACT On(Green)

PD is connected and work
Off No network device or cable connected incorrect or the cables damaged

Caution:

1) All operation should be provided only by a qualified service technician.

2) Please avoid any heavy thing placed on the Device.

3) Do not use this product near water, for example, in a wet basement or near a swimming pool.

4) For outdoor use, the device itself should be housed inside a protective enclosure.

5)Cutting power during a firmware upgrade can damage your device.

6)Only use attachments/accessories specified by the manufacturer.

7)Opening the switch or tampering with the warranty sticker can void your warranty.
