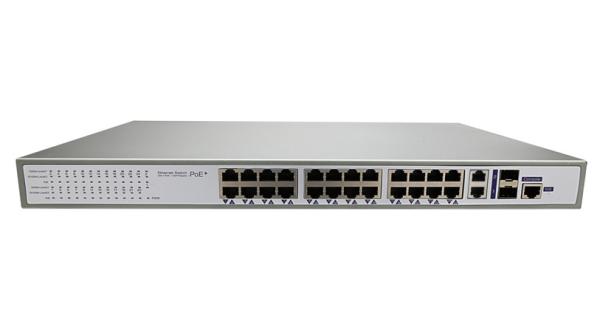

Single Output Power 15.4W 24 Port PoE Switch 1000Mbps Auto Negotiation Build In Power
Single Output Power 15.4W 24 Port PoE Switch 1000Mbps Auto Negotiation Build In Power
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-PSNG1124F-450
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Price :
Negotiation
Description

24 port 1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports PoE switch

Non management*Compatible IEEE802 3af at,IEEE802 3az function*24 X 10 100 1000Mbps RJ45 port*24 X PSE port, Output power up

Feature

Support IEEE802.3af/IEEE802.3af standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 15.4W
Port power is automatically assigned
Dynaic Power Allocation

Specification
● 24 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port: 2 Gigabit Fiber Ports,Data transmission: depends on the optical module
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V 8.7A 450W,build-in power supply

Connection diagram

Single Output Power 15.4W 24 Port PoE Switch 1000Mbps Auto Negotiation Build In Power

​Order information

Part No Description of product Unit
ND-PSNG1124F-450 ND-PSNG1124F-450 PoE Switch pcs
