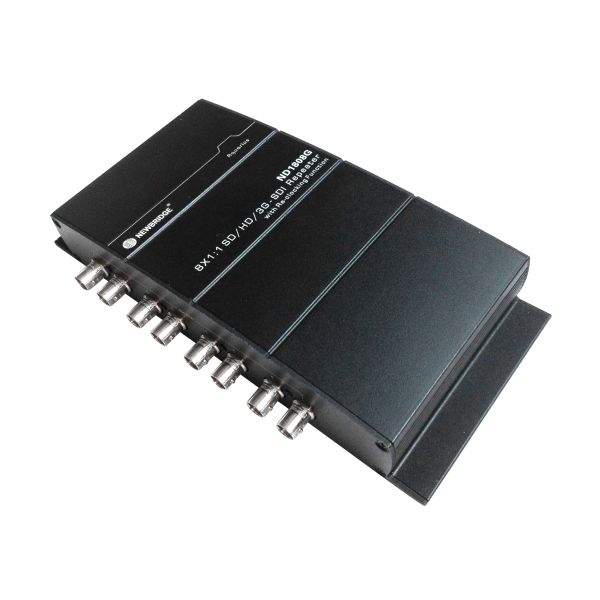

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function
High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function
Specifications
Model Number :
ND1808G
Place of Origin :
SHENZHEN,CHINA
Brand Name :
NEWBRIDGE
Certification :
FCC,CE
MOQ :
1PC
Price :
Negotiation
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Model :
ND1808G
Video out :
8 piece one SDI port
Power Supply :
5V~24V DC
Connection Port :
BNC-F (75Ω)
Dimension :
140×230×40mm/5.51×9.07×1.57inches
Weight :
670g
Description

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function

1. Overview

Newbridge® ND1102BD 8X1:1SD/HD/3G -SDI Repeaters with Re-clocking function. These devices receive eight SDI input at the same time and perfectly duplicates them. Then they re-transmit eight channel SDI outputs for real time multi-viewing. They are reliable video devices splitting eight SD-SDI or HD-SDI or 3G-SDI video source to SD or HD-SDI or 3G-SDI display at the same time and takes eight input then re-clocks and equalizes the signal and distributes it to eight identical outputs.

2．Features

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function

ND1808G

l SDI Standard: HD-SDI, SD-SDI

l Data Rates: 270Mbps/1.485 Gbps/2.97Gbps

l Signal Type: SMPTE 292M, SMPTE 259M

l Two separately buffered outputs

l Cable equalization (Beldon 1694A) retiming and signal

l Re-clocking function capability – unlimited repeater connection

l Dual color LED indication of nput locik and rate

l Pass all ancillary data

  • 5V~24V DC

3．Application Diagram

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function

4. Dimensions

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function

ND1808G

5. Specifications

Model ND8018G
Video In 8 piece one SDI port
Video Out 8 piece one SDI port
Input Signal Type SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps)
Support Input Format

SD-SDI: 480i, 576i

HD-SDI: 720p24/25/30/50/59.94/60 all frame rate;

1080i all frame rate, 1035i all frame rate;

1080p all frame rate

3G-SDI: 1080p all frame rate
SDI Signal Range 0.8V p-p
SDI Impedance 75 ohms
SDI Coupling Type AC Coupling
Input Power DC 12V/250mA
Max. Distance

Belden 1694A

SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
Re-clocking Auto Support 270Mbps/1.485Gbps/2.97Gbps
Power Supply 5V~24V DC
Connection Port BNC-F (75Ω)
Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Dimension 140×230×40mm/5.51×9.07×1.57inches
Weight 670g

6. Order Information

Part No Description of product Unit
ND1808G 8X1:1SD/HD/3G -SDI Repeaters pcs
