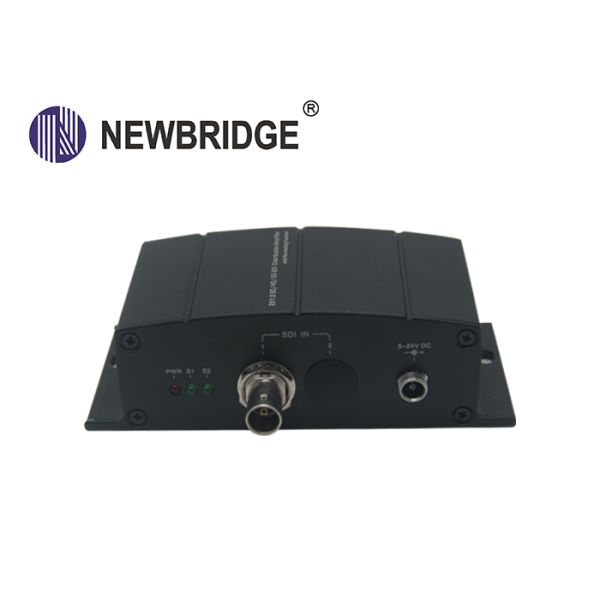

HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter

Specifications

Brand Name :

NEWBRIDGE

Model Number :

ND1202G

Certification :

FCC,CE

Place of Origin :

SHENZHEN,CHINA

MOQ :

1PC

Packaging Details :

packing can be done by customer's requested, usually used in carton

Delivery Time :

According to the quantiy and stocking , 3-4 working days after payment

Payment Terms :

T/T , Western Union

Supply Ability :

According to the different products , the monthly output is different

Price :

Negotiation

SDI Standard :

HD-SDI, SD-SDI

Data Rates :

270Mbps/1.485 Gbps/2.97Gbps

Signal Type :

SMPTE 292M, SMPTE 259M,SMPTE424M

voltage :

DC 5-24V

size :

92*120*36mm

SDI Standards :

3G-SDI, SD-SDI, HD-SDI

Description

HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter

Newbridge® ND1202G SD HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function It receive one SDI input and perfectly duplicates it Then it re-transmits two SDI outputs for real time multi-viewing It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs

Feature

◆SDI Standard: HD-SDI, SD-SDI
◆ Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
◆ Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
◆ Two separately buffered outputs
◆ Cable equalization (Beldon 1694A) retiming and signal
◆ Re-clocking function capability – unlimited repeater connection
◆ Dual color LED indication of nput locik and rate
◆ Pass all ancillary data
◆5V~24V DC

Specification

Model	ND1202G
Re-clocking Function	Yes
SDI Standards	3G-SDI, SD-SDI, HD-SDI
HD/SD-SDI Detection	Auto
Data Rates	270 / 1483 / 1485 /2970Mbps
V ideo Support	SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 59.94Hz / 60Hz
SDI Signal Type	SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance	75 ohms
Max. Distance	Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
Audio Support	Yes
Input	1x BNC [SDI]
Output	2x BNC [SDI]
BNC Connector	75 ohms inter-locked socket
Power Consumption	2~4 Watts
Relative Humidity	20~90% RH (no condensation)
Dimension	9212036
Weight	160g

Connection diagram

Order information

Part No	Description of product	Unit
ND1202G	1x2 port 3G/HD-SDI Distribution Amplifier Splitter	pcs
