Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver
Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-8012D
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Model :
ND8102D
Signal Type :
SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
Operating Temperature :
0°C ~ 60°C / 32°F ~ 140°F
Power Supply :
5~24DC
Storage Temperature :
-30°C ~ 70°C / -22°F ~158°F
Dimension :
176 x 150 x 30 mm / 6.97x 6.10 x 1.18 inches
Description

Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver

1. Overview

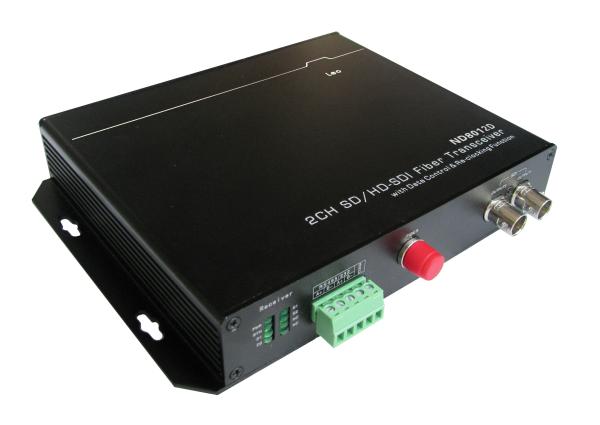

Newbridge® ND8012D HD-SDI Optical Transceiver is a perfect and economic transmission device to transmit SD/HD-SDI video to up to 60KM and Plus, embedded audio and RS485 data via fiber-optic.

Transmitter is used as sending and Receiver is used as receiving .System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.

Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver

ND8012D

l Support 2 channel SD/HD video embedded audio signal via fiber

l SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s

l Transmission distance is from 0km to 40KM via multimode fiber or single mode fiber.

l Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI

l Support plug and play function

l Operation status indication by LED

3．Application Diagram

Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver

4. Dimensions

Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver

5. Specifications

Model/Name ND-8012D
Quantity/Type Single Mode, Single Fiber
Video port 2CH BNC SD/HD-SDI
Transmission Distance 0m-20Km/40km/60KM optional
Fiber Connector FC
Wave Length 1310nm/1550nm
Transmitted power -10dbm～-3dbm
Maximum Receiving Sensitivity <-34dbm
Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Support Input Format

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 25Hz / 29.97Hz / 30Hz

720p @ 50Hz / 59.94Hz / 60Hz

1080i @ 50Hz / 59.94Hz / 60Hz

1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz
Video Standard SMPTE 292M , SMPTE 259M
DATA comm. method 2CH RS-485/Half duplex/ Industrial terminals
In-out electrical level 800mVp-p±10%
In-0ut Ohm 75Ohm
Digital Audio 48KHz
AES digital audio channel 8CH
Power Supply 5~24DC
Power Consumption 3~5 Watts
Operating Temperature 0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Relative Humidity 20~90% RH (Non-condensation)
Dimension 176 x 146 x 30 mm / 6.97x 6.75x 1.18 in
Weight 900g (Tx and Rx)

6. Order Information

Part No Description of product Unit
ND-8012D-Tx SD/HD-SDI Optical-Transmitter pcs
ND-8012D-Rx SD/HD-SDI Optical-Receiver pcs

Product tags

hd sdi transmitter

,

s video to sdi converter

,

sdi to s video converter
