Professional Sdi To Hdmi Mini Converter , Fiber Optic To Sdi Converter
Professional Sdi To Hdmi Mini Converter , Fiber Optic To Sdi Converter
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-6110
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Price :
Negotiation
size :
112× 117×25mm
InputInterface :
2 HDMI
PowerSupply :
12VDC
PowerConsumption :
3~6 Watts
StorageTemperature :
-30°C~70°C/-22°F~158°F
RelativeHumidity :
20~90%RH
Description

2018 Top Quality 1080p to 1080i HD SDI Converter HDMI TO SDI Converter

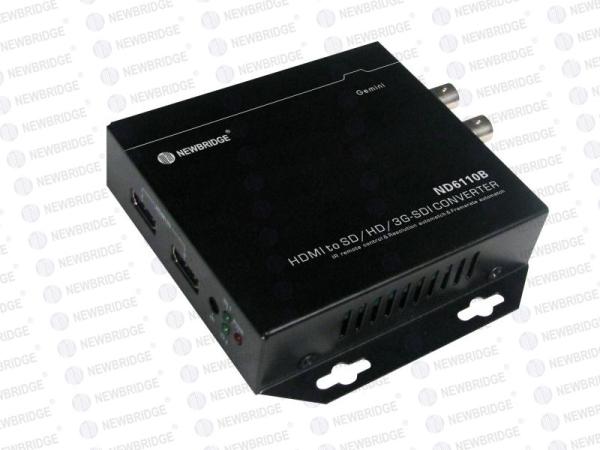

Newbridge® NB6110B HDMI to SD HD 3G-SDI Converter is mainly used in converting one channel High Definition Multimedia Interface (HDMI) signal to serial Digital Interface (HD-SDI) signal The device integrates SDI transmitter and HDMI demodulator ,and simultaneously separate and convert HDMI audio signal, then embed it to HD-SDI signal to achieve the sound and image synchronization transmission

Feature

◆ Support series connection function in Transmitter and Receiver and easy to build a network system by installer.

◆ Switch easily between two HDMI sources by Remote control.
◆ HDMI signal convert SDI signal to achieve long distance transmission.
◆ Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.
◆ Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz.
◆ Support digital video formats in Deep Color Mode at up to 12bits/color.
◆ Support full HDMI audio and video.
◆ Normal mode and Turbo mode switch
◆ Power supply and SDI signal format indicator
Specification
Model ND6110B
InputInterface 2xHDMI
FrequencyBandwidth 225MHz/ up to standard with HDCP :HDMI 1.3

SupportInputFormat

480i,576i,720p@50/60,1080i@50/60,1080p@24/25/30,

1080p50/60
SDIOutInterface 2x BNC(SD-SDI/HD-SDI/3G-SDI)
SDI SignalRange 0.8Vp-p
SDI Impedance 75ohms
SDI CouplingType AC Coupling
SDI signal jitter(typical value) SD-SDI≤0.1 UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI

Max.OutputCoaxLength

Belden1694A

SD-SDI 400m/ 1300ft ;HD-SDI 200m/ 600ft ;3G-SDI140m/ 450ft
PowerSupply 12VDC ,1Aw/LockingPower Connector
PowerConsumption 3~6 Watts
OperatingTemperature -10°C~60°C/14°F~140°F
StorageTemperature -30°C~70°C/-22°F~158°F
RelativeHumidity 20~90%RH(Non-condensation)
Dimension 112× 117× 25 mm / 4.40× 4.46× 0.98 in
Weight 280g

Connection diagram

Professional Sdi To Hdmi Mini Converter , Fiber Optic To Sdi Converter

Order information

Part No Description of product Unit
ND-6110B HDMI to SDI Converter piece
Product tags

hd sdi to fiber optic converter

,

hdmi to optical converter

,

sdi to optical converter
