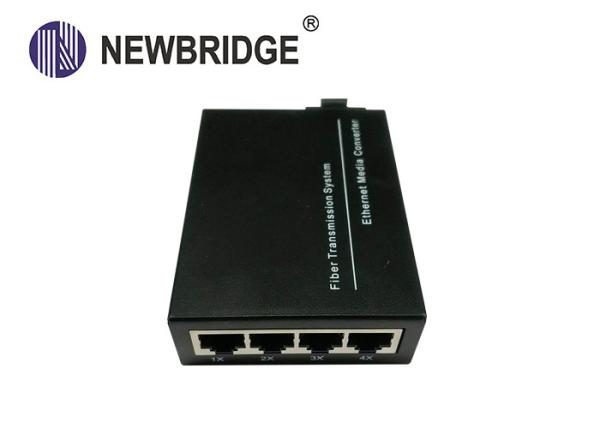

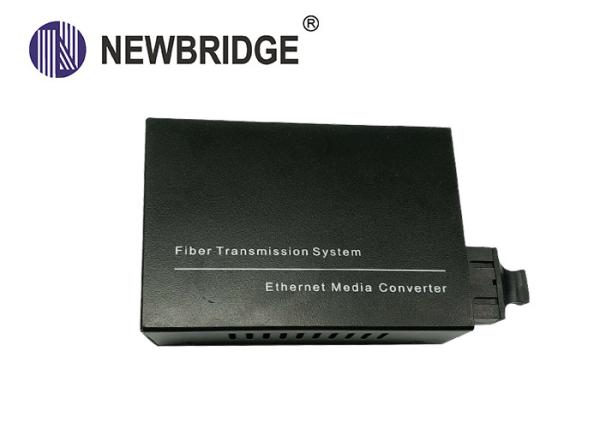

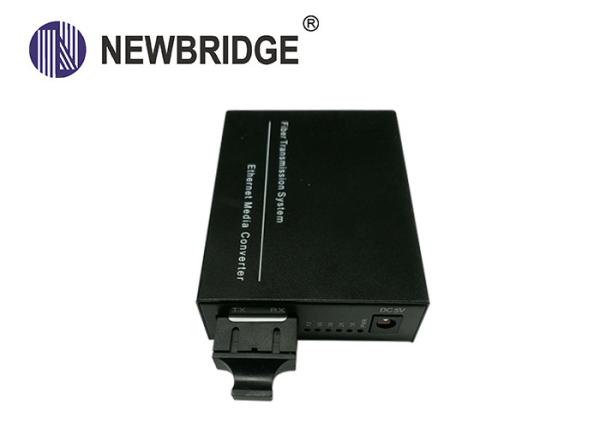

100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-820SW-S20-4
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Power dissipation :
＜2.5W
Fiber Connector :
SC standard, ST/FC optional
fiber distance :
20KM
power supply :
DC 5V,AC 100-240V;
UTP Rate :
10/100M
MTBF :
50000 hours
Description

100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports

Feature

The suit of 10/100M IP Switch :
1X7 10/100M IP Switch (A) &
1X1 10/100M media converter(B)
1. 10/100M single fiber single mode,1310TX/1550RX,SC port,0~20KM;
2. External power supply: DC/5V,AC/100-240V;
3. Stand alone type;

Specification

Standard IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100 BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km)
9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Input Voltage DC 5V1A with External power adapter
Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 1K
Buffer Size 1M
Operating Temperature 0°C~50°C
Storage Temperature -40°C~70°C
Storage Humidity 5%~90% non-condescending

Connection Diagram

100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports

Order info

Part No Description of product Unit
ND-820SW-S20-4 10M/100M bps, Single mode,1310nm,0-20KM,SC
