10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-820SW-20-3
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
tandard :
IEEE802.3,),IEEE802.3u,IEEE802.3x,IEEE802.1q,IEEE802.1p QoS, IEEE802.1d
fiber type :
Dual fiber Single mode
Storage Humidity :
5%~90%
Fiber Connector :
SC standard, ST/FC optional
MTBF :
50,000 hours
Operating Temperature :
0°C~50°C
Description

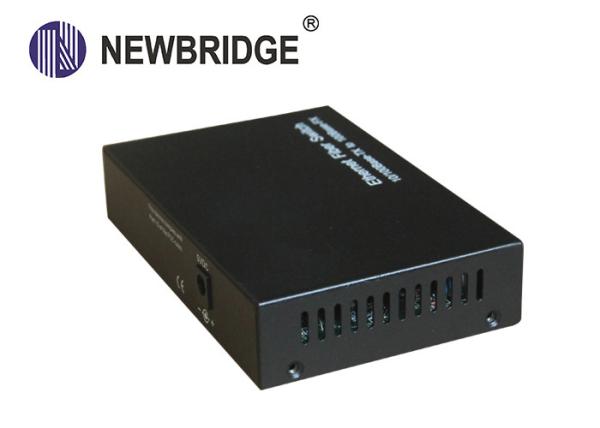

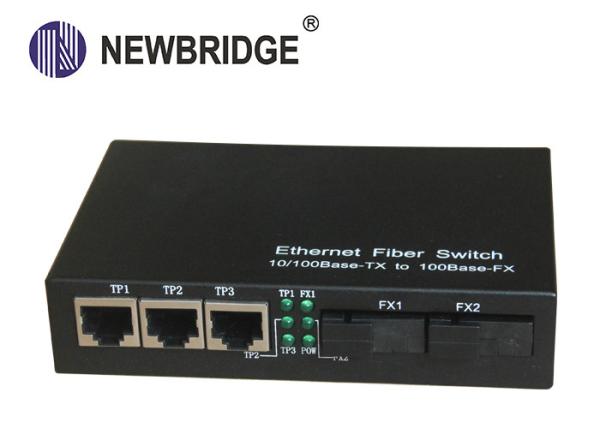

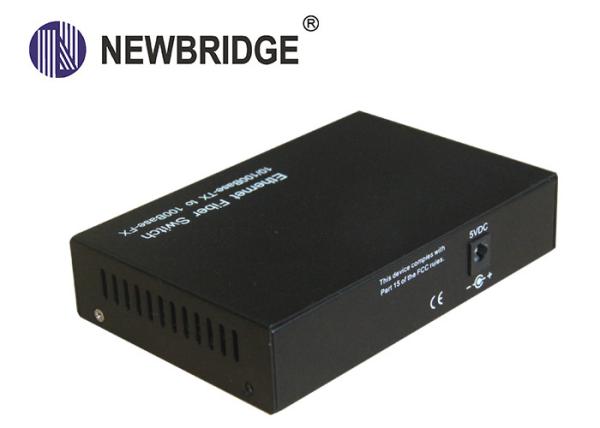

10M/100Mbps Dual fiber Single mode 1310nm 20KM SC Port Fiber Media Converter with Switch

Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter,or fiber switch is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics

Feature

♦ 2x3 10/100M IP Switch
♦ 2* 10/100M fiber port ,3 *10/100M RJ45 port ,
♦ Dual fiber single mode 1310nm,SC,0~20KM,stand alone type,
♦ Internal power supply,DC/12V,AC/100-240V,
♦ Through the optical fiber cascaded multiple lans

Specification

Standard IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100 BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km)
9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310nm
Input Voltage ,DC/12V,AC/100-240V
Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 1K
Buffer Size 1M
Operating Temperature 0°C~50°C
Storage Temperature -40°C~70°C
Storage Humidity 5%~90% non-condescending

Order info

Part No Description of product Unit
ND-820SW-20-3 1*10M/100M bps fiber port+1*10/100M RJ45, single mode single fiber,1310nm,20KM,SC pc

10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch

10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch10 100M Media Converter Single mode Dual Fiber Optic Media Converter 1310nm SC with Switch
