IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender
IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender
IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender
IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND1104-EX01
Certification :
CE,FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Weight :
240g x 2
szie :
92x79x20 mm
power input :
AC 100-240V
power output :
DC 5V 1A
Operating Temperature/Humidity :
0℃~70℃
Storage Temperature/Humidity :
-10℃~80℃
Description

1080P HDMI KVM USB Extender 120M over IP/RJ45 Ethernet with IR Control,Fiber Optic Extender

Introduction
HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.

HDTV Resolutions 480p,576p,720p,1080p
Audio Sample rate:32kHz,44.1kHz,48kHz
IR remote control 38kHz;NEC
HDMI HDMI 1.3
HDCP HDCP 1.2
Power adapter Input:100V-240V(50-60Hz) Output:5V/1A
Power consumption HDMI Sender:3W HDMI receiver:3W
Size(L-W-H) 92x79x20mm
Weight 240g x 2
Operating Temperature/Humidity 0℃-70℃/10%-80%RH(no condensation)
Storage Temperature/Humidity -10℃-80℃/5%-90%RH(no condensation)

Specification

★ Following TCP/IP standard.
★ Support HDMI1.3 protocol.
★ HDCP1.1 & 1.2 protocol compliant
★ Support point-to-point mode, one point-to-many mode and cascade connection mode.
★ Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.

Package contents

Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit No. 1 Sender , Main unit No. 2 Receiver
2) Two pieces of 5V DC Power Supply.
3) one piece of IR transmitter and one piece of IR receiver
4) User’s Manual

Descriptions

HDMI Transmitter

IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender

5V/1A Supply power for the Transmitter
Reset Hold down the key,the model will re-start
IR-out Connect IR transmitter this Port
HDMI-in Connect HDMI sink source to this Port

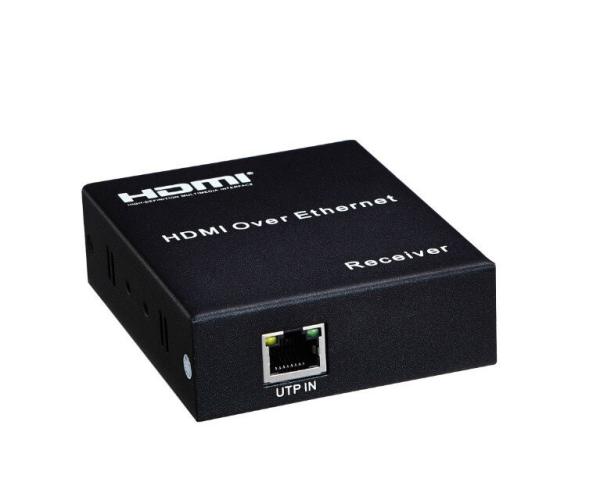

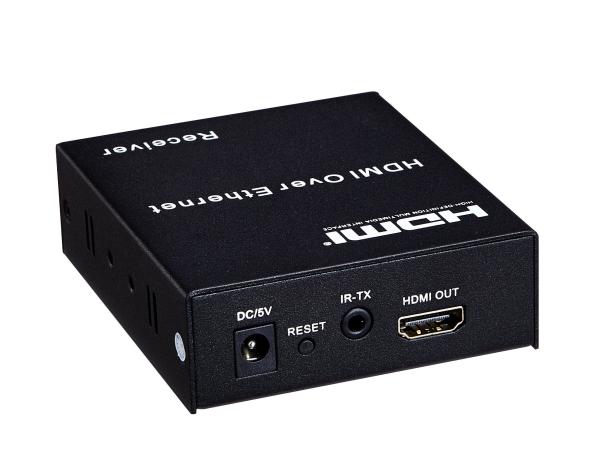

HDMI Receiver

IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender

5V/1A Supply power for the Receiver
Reset Hold down the key,the model will re-start
IR-in Connect IR Receiver this Port
HDMI-out Connect HDMI sink device to this Port

Connection and operation

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender.
2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source’s IR receiver.
3) Connect the HDMI out of Receiver to HDTV display.
4) Connect the IR receiver to the Receiver IR IN Port.
5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.
6) Plug two pieces of 5V power supply into the Sender and Receiver.
7) Power on the HDTV display and HDMI source.

Application diagrams

IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender

IR Control KVM Fiber Optic Extender ,120M Over IP / RJ45 Ethernet USB Optical Extender
