19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND1P1603FGX
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
3000pcs per month
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Power Adapter Voltage :
AC 110V-240V
POE Ethernet Port :
1～16 Port : 10/100Mbps
Transmission Medium :
Cat5/5e/6 standard network cable
Working temperature :
0℃~55℃
PoE Power :
af=15.4W (every port)
Weight :
1647g
Description

19 ports poe Ethernet switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo

1. Overview

Newbridge® The switch is a compact 16+3 port PoE Switch,With 16*10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 1*10/100/1000Mbps SFP Port(combo),The 16*PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.

2.Feature

19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port

l 16x 10/100Mbps auto-sensing RJ45 ports, 16*10/100Mbps PoE ports, 2*10/100/1000M uplink port,1 x SFP port(combo)

l Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters

l Supports port auto-flip (Auto MDI/ MDIX);

  • Each of 16 ports all support IEEE802.3af;

l Maximum power of single PoE port: 15.4W;

l Maximum PoE power: 250W;

  • Adopts store-and-forward architecture;

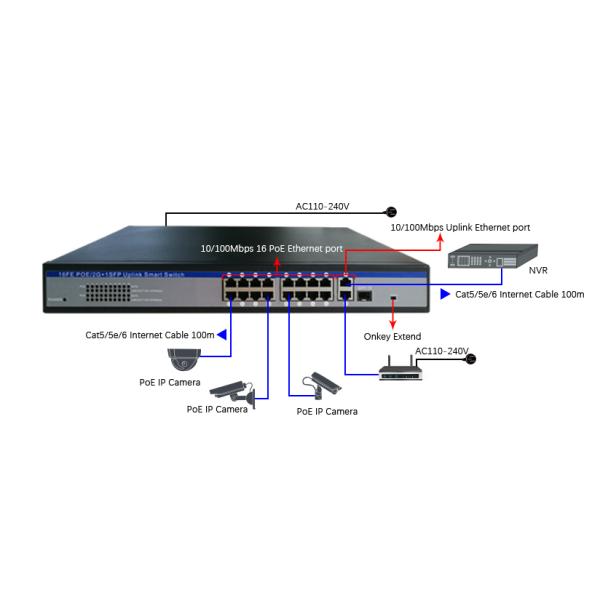

3．Application Diagram

19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port

  • Dimensions

19 Ports Industrial Ethernet Switch , Power Over Ethernet Switch 2*10/100/1000M Uplink Port

5. Specifications

Item Description
Power Power Adapter Voltage AC 110V-240V
Consumption 250W

Network Connector

Network Port

 POE Ethernet Port 1～16 Port : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps

SFP Port

SFP Port: 10/100/1000Mbps

Transmission Distance

1～16 Port : 100Mbps:0~100m;

10Mbps: 0~250m;
Uplink Port : 0 ~ 100m

SFP: depends on the optical module(Combo)
Transmission Medium Cat5/5e/6 standard network cable

Network Switch

 Network Standard

IEEE802.3/802.3u,

IEEE802.3x,IEEE802.1D
Switching Capacity 9.6G
Packet Forwarding 6.8448Mpps
MAC Table 2K

Power Over Ethernet

 PoE Standard IEEE 802.3af
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W (every port)

LED Status Indicator

PoE Ethernet

LED Indicator

 Power: 1 red light indicates that the power normal work;
POE: 16yellow lights indicate that the PoE is power on;
Ethernet: 18 green lights indicate that the Ethernet Link and Act;

Environmental

 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃

Mechanical

 Dimension (L×W×H) 440mm*285mm*55mm
Color Black
Weight 1647g
Stability MTBF >30000h

6. Order Information

Part No Description of product Unit
ND1P1603FGX 19 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
