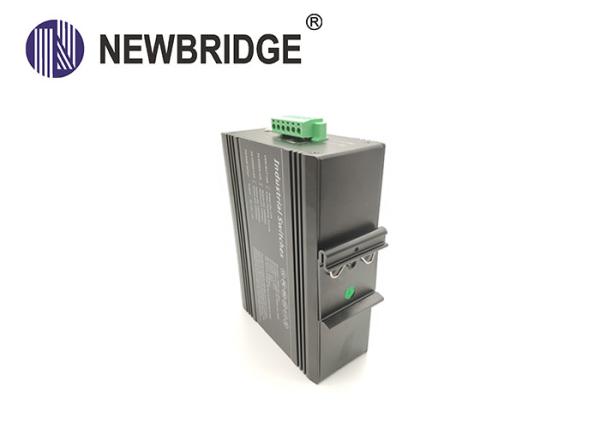

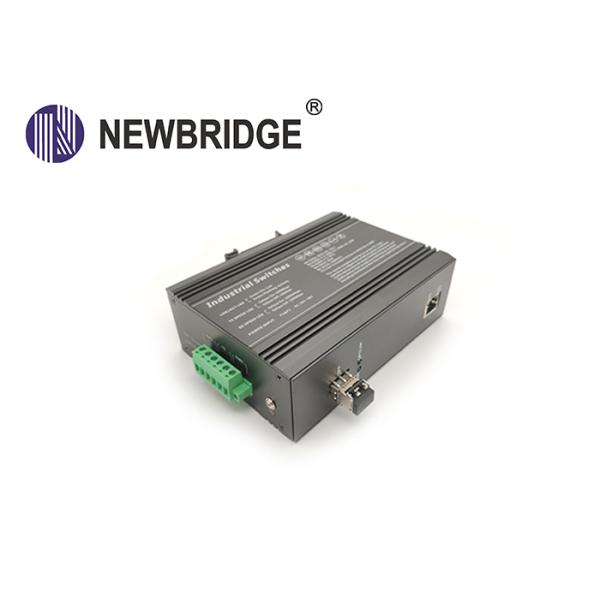

Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-X820SW-SFP
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
3000pcs per month
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Fixed Port :
1*100 Base-X, 1*10/1000 Base-T
Twisted-pair :
0-100m（CAT5e,CAT6）
Single mode Optical Fiber :
20/40/60/80/100KM
Multimode Optical Fiber :
550m
Input Voltage :
DC10-58V
Power Consumption :
Non PoE<5W, PoE<65W
Description

Industrial PoE Switch media converter with SFP port and DIN rail

1. Overview

Newbridge® Unmanaged Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantages of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40°C to +85°C with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

2.Feature

Industrial PoE Ethernet Switch Media Converter DC10-58V With SFP Port / DIN Rail

1*100Base-FX, 1*10/100Base-T

Unmanaged Industrial Media Converter

Input Voltage: DC10~58V

Operating Temperature: -40℃ ~ +85℃

Shell: IP40 protection, fanless design

Test Report: CCC, RoHS, FC, CE, ISO

Anti-static: 8KV-15KV

MTBF: 100000 Hours

3. Specifications

Provider Mode Ports
Fixed Port 1*100 Base-X, 1*10/1000 Base-T
Management Port Unsupported
Power Interface Phoenix terminal, redundant dual
LED Indicators PWR,Link/ACT LED
Cable Type&Transmission Distance
Twisted-pair 0-100m(CAT5e,CAT6)
Single mode Optical Fiber 20/40/60/80/100KM
Multimode Optical Fiber 550m
Net Topology&Networking Scale
Ring Topology Unsupported
Star Topology Support
Bus Topology Support
Tree Topology Support
Electrical Specifications
Input Voltage DC10-58V
Power Consumption Non PoE<5W, PoE<65W
PoE (Support Optional)
PoE Port 1-1
PoE Protocol 802.3af, 802.3at
PoE Pin Assignment 1,2,3,6
PoE Management Unsupported
Layer 2 Switching
Switching Capacity 1G
Packet Forwarding Rate 0.744Mpps
MAC Address Table 8K
VLAN Unsupported
Buffer 1M
Forwarding Delay <4us
MDI/MDIX Support
Flow Control Support
Jumbo Frame Support 10Kbytes
Environment
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Relative Humidity 5%~95% (non-condensing)
Thermal Methods Fanless, natural cooling
MTBF 100,000 Hours
Mechanical Dimensions
Product Size 143X104X48mm
Installation Method Din-rail
Weight 0.52KG
EMC&Ingress Protection
IP Level IP40
Surge Protection Of Power IEC 61000-4-5 Level 3 (4KV/2KV)(8/20us)
Surge Protection Of Ethernet Port IEC 61000-4-5 Level 3 (4KV/2KV)(10/700us)
EMI CLASS A
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free Fall 0.5m
Authentication
Authentication CCC, CE, FCC, RoHS
Accessories

Accessories

Device, Terminals, Specification, Certificate

Adapter(optional)

4.Order Information

Part No Description of product Unit
ND-X820SW-20 Unmanaged Industrial Ethernet Media Converter 1*100Base-FX, 1*10/100Base-T,SC port ,1*9 module dual fiber single mode,20km Optional PoE pc
ND-X820SW-SFP Unmanaged Industrial Ethernet Media Converter 1*100Base-FX, 1*10/100Base-T,SFP module, Optional PoE PC
