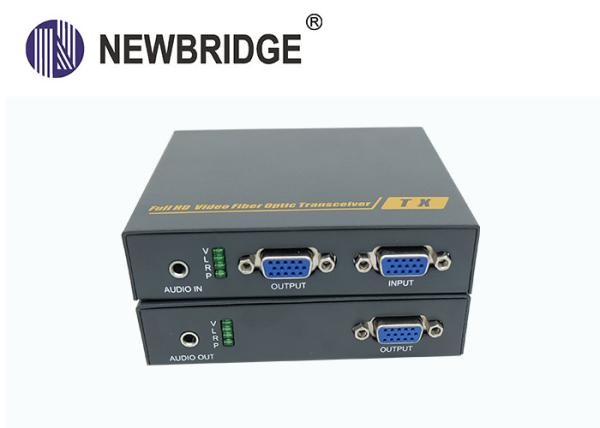

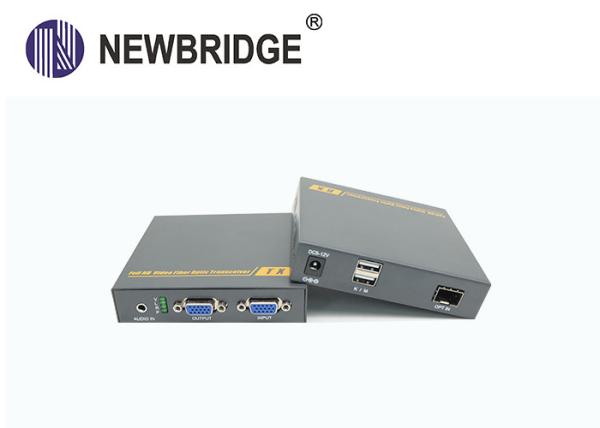

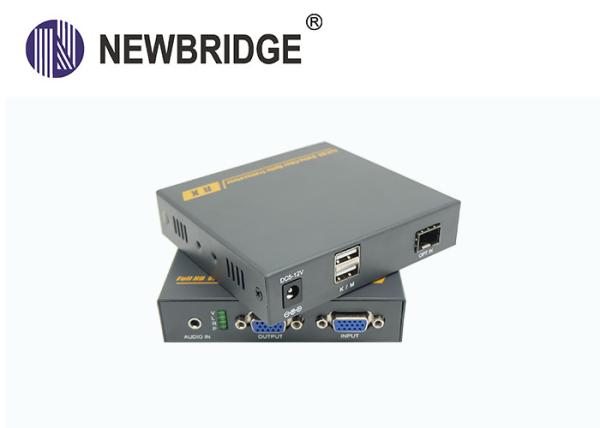

Best price 20Km single mode 1080p resolution VGA Fiber Optic extender
1. Overview
Newbridge® The VGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, transmitter local output, external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2. Feature
| l Transmits VGA video signals up to 10km over one fiber optic cable; l Support video resolution up to 1920*1200@60Hz; l Support keyboard and mouse signal transmission; l Support external stereo audio unidirectional transmission; l Support transmitter one channel VGA signal output; l High compatibility, can auto-match source and display device; l Built-in automatic adjustment system, make the image smooth, clear and stable; l Built-in ESD protection system; l Simple to install, plug and play;
|
3. Application Diagram
4. Specification
Parameter | Description | |
Video | Standards | VGA |
Maximum pixel clock | 380MHz | |
Resolution | 1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz | |
Impedance | 75Ω | |
Audio | Interface | 3.5mm earphone seat |
Format | 44.1K,48K,96K,176K,192K | |
Signal type | Stereo | |
K/M | Interface | To PC: USB-B To keyboard and mouse: USB |
Optical fiber | Interface | LC connector |
Fiber type | Single-mode single fiber | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 2.97Gbps | |
Transmission distance | standard 10km | |
Other | Power supply | The power adapter:DC 5-12V |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 107*104*24mm | |
5. Order Information
Part No | Description of product | Unit |
ND8110VFUM | Unpacked VGA Fiber Extender,Transmits VGA video signals up to 10km over one fiber optic cable, Single fiber single mode , FC port, Support video resolution up to 1920*1200@60Hz; | pair |
