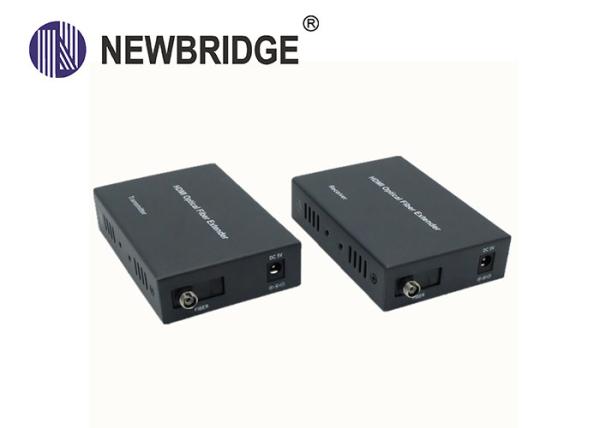

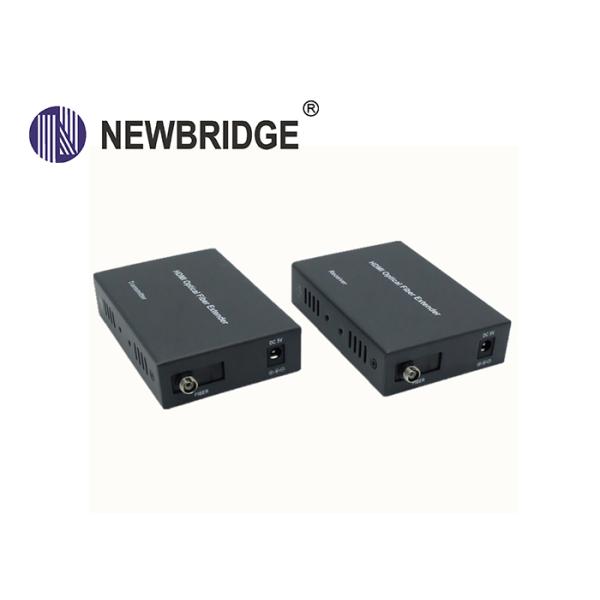

HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND8110HF
Certification :
CE,FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1pair
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Impedance :
100Ω
size :
113*80*28mm
Power supply :
The power adapter: DC 5V/2A
Operating Humidity :
5% ~ 90%
Operating temperature :
(-5 to +70℃)
Weight :
370g
Description

HDMI Fiber Optic Extender up to 20km support IR transmission

1. Overview

Newbridge® The equipment provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2.Feature

HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission
  • Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
  • Support video resolution up to 1920*1080@60Hz;
  • Support IR transmission;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;

Simple to install, plug and play

3．Application Diagram

HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission

  • Panel

Transmitter:

HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission

Receiver:

HDMI Fiber Optic Kvm Extender 20km 1080P High Resolution Support IR Transmission

Port name Description
HDMI IN/OUT HDMI signal input/output
IR IN/OUT Infrared signal input/output
FIBER Optical fiber interface
DC/5V Power adapter socket
RESET Restore button, press for 5 second to restore system setting to factory default
LED indicator Description
LINK Optical fiber signal connection indicator
STA Video signal connection indicator
PWR System power indicator

5. Specifications

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution range Up to 1920X1080P@60Hz
Connector Female HDMI type A
Impedance 100Ω
Infrared Interface 3.5mm earphone seat
Signal type Digital
Transmission direction Unidirectional
Carrier frequency 38kHz
Optical fiber Interface SC/FC connector
Fiber type Single Mode
Wavelength 1310nm, 1510nm
Interface bandwidth 155Mbps
Transmission distance Standard: 20km;
Other Power supply The power adapter: DC 5V/2A
Power dissipation MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 113*80*28mm
The warranty 1 year free warranty

6. Order Information

Part No Description of product Unit
ND8110HF HDMI Fiber Optic Extender(packed),1*HDMI+1*100M single Fiber,Video and audio,20km,FC port,up to 1920*1080@60Hz,HDMI1.3,HDCP1.2,DC5V2A pair
