FC HD TVI / CVI / AHD Transmitter Receiver , CVI To Fiber Passive Transceiver
FC HD TVI / CVI / AHD Transmitter Receiver , CVI To Fiber Passive Transceiver
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-4V-CVI
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Wavelength :
1310nm&1550nm
Optical interface :
FC、ST 、SC (optional)
Fiber Type :
Multi-mode fiber or Single mode fiber
Distance :
0km~80km (Optional)
Impedance :
75Ω
Power Consumption :
≤5W
Description

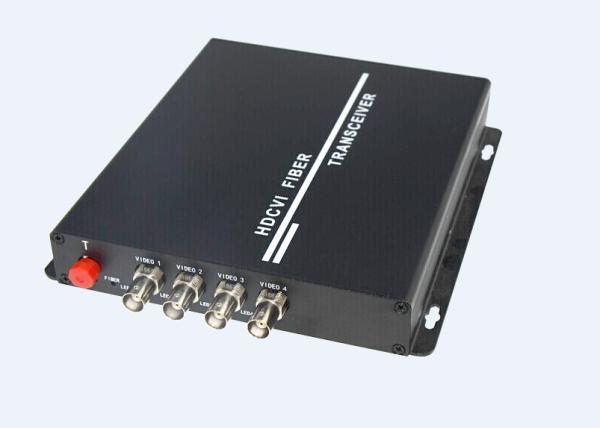

HD-4V HDCVI to Fiber Converter

Introduction

Fiber optical HDCVI converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance (as far as 80Km) transmission through fibers.

Features

  • Non-compression coding technology
  • Automatically identify formats of input videos
  • Support transmission of 2 channel HDCVI signal and controlling data simultaneously though coaxial cable
  • DC 5V power supply
  • Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 videos etc
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.

Application

FC HD TVI / CVI / AHD Transmitter Receiver , CVI To Fiber Passive Transceiver

Technical Specification

Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m
Input / Output Impedance 75 Ω
Physical Interface 2 channel BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input / Output Impedance 75Ω
Physical Interface 2 channel BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200～9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)

＞100 000 hours
General EPS DC5V
Power Consumption ≦5W
Operation Temperature —40℃～75℃
Operation Humidity 10%～90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted
Unit Weight

1.1kg (pair)(720P)

1.5kg (pair)(1080P)
Dimension

108mm×106mm×27mm(720P)

170mm×167mm×28.5mm(1080P)

Ordering information

Model Number Product Configuration Fiber Interface Fiber Mode Wavelengths Transmission Distance
ND-CVI-1V-T/RF 1 Ch Forward HDCVI Video FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-1V1D-T/RF 1 Ch Forward HDCVI Video+1 Ch Reverse Data FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-2V-T/RF 2 Ch Forward HDCVI Video FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-2V1D-T/RF 2 Ch Forward HDCVI Video+1 Ch Reverse Data FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-4V-T/RF 4 Ch Forward HDCVI Video FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-4V1D-T/RF 4 Ch Forward HDCVI Video+1 Ch Reverse Data FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-8V-T/RF 8 Ch Forward HDCVI Video FC/SC/ST Single-mode 1310/1550 nm 20Km
ND-CVI-8V1D-T/RF 8 Ch Forward HDCVI Video+1 Ch Reverse Data FC/SC/ST Single-mode 1310/1550 nm 20Km
