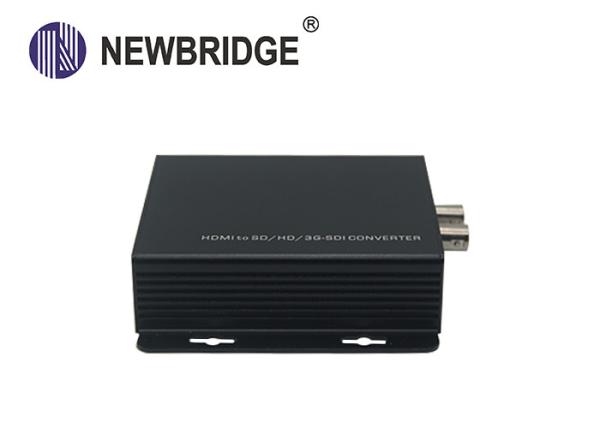

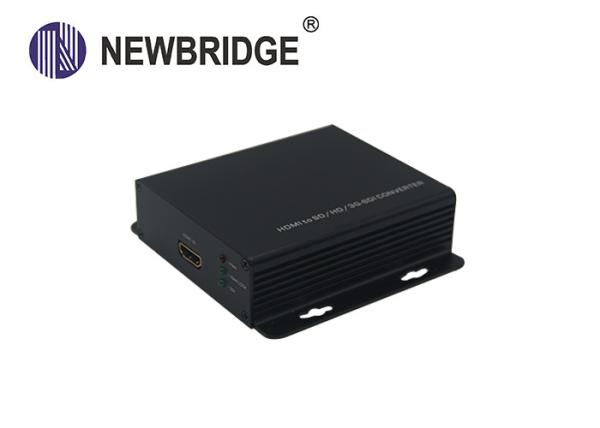

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-6110G
Place of Origin :
SHENZHEN,CHINA
Packaging Details :
packing can be done by customer's requested, usually used in carton
MOQ :
1PC
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Certification :
FCC,CE
Price :
Negotiation
Supply Ability :
According to the different products , the monthly output is different
Payment Terms :
T/T , Western Union
SDI Out Interface :
2x BNC(SD-SDI/HD-SDI/3G-SDI)
Power Supply :
12V DC
Power Consumption :
3~6 Watts
Operating Temperature :
-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature :
-30°C ~ 70°C / -22°F ~158°F
Manual Control Output Format :
1080p,1080i,720p
Description

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

Overview

Newbridge® NB6110G HDMI to SD/HD/3G-SDI Converter is mainly used in converting one channel high-definition multimedia interface (HDMI) signal to high-definition serial digital component interface (HD-SDI) signal .The device integrates SDI transmitter and HDMI demodulator ,and after separate and convert HDMI audio signal, then embed to HD-SDI signal, and achieve the sound and image synchronization transmission.The resolutions of HDMI or SDI would be forced by the console,Our products would offer multi-resolution to choice(1080p60/50/30/25 1080i60/50 720p60/50/30).

Features

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

ND6110G

  • The resolutions of HDMI or SDI would be forced by the console

  • One piece of 75Ω Coax. cable can substitute HDMI cable to achieve long distance transmission.

  • Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.

  • Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz.

  • Support digital video formats in Deep Color Mode at up to 12bits/color.

  • Support full HDMI audio and video.

  • Support external audio embed into SDI signal synchronously

  • Power supply and SDI signal format indicator

Application Diagram

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

4. Dimensions

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

Specifications

Model

ND-6110G

InputInterface

2xHDMI

Audio Input Interface

1xAudio

FrequencyBandwidth

225MHz/ up to standard with HDCP :HDMI 1.3

SupportInputFormat

480i,576i,720p@50/60,1080i@50/60,1080p@24/25/30,

1080p50/60

SDIOutInterface

2x BNC(SD-SDI/HD-SDI/3G-SDI)

SDI SignalRange

0.8Vp-p

SDI Impedance

75ohms

SDI CouplingType

ACCoupling

SDI signal jitter(typical value)

SD-SDI≤0.1 UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI

Manual Control Output Format

1080p60/50/30/25 1080i60/50 720p60/50/30

Max.OutputCoaxLength

Belden1694A

SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ;3G-SDI140m/ 450ft

PowerSupply

12VDC ,1Aw/LockingPower Connector

PowerConsumption

3~6 Watts

OperatingTemperature

-10°C~60°C/14°F~140°F

StorageTemperature

-30°C~70°C/-22°F~158°F

RelativeHumidity

20~90%RH(Non-condensation)

Dimension

158×120×36mm/6.22×4.72×1.42in

Weight

300g

Part No

Description of product

Unit

ND-6110G

HDMI to SD/HD/3G-SDI Converter

pcs

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
