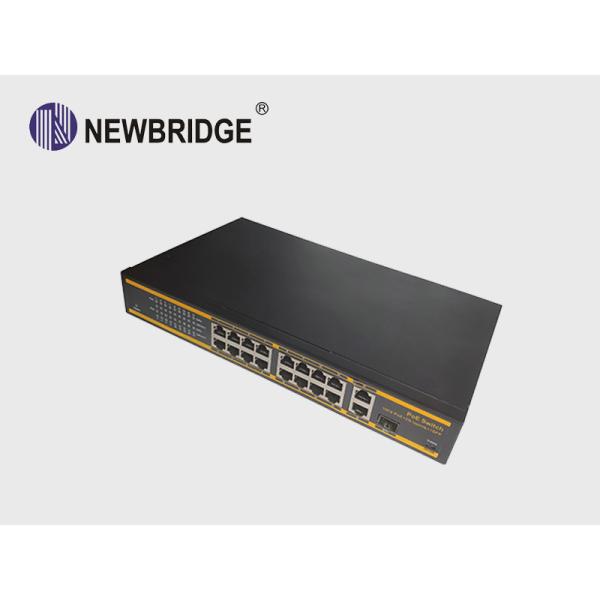

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND1PD1603FGX
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
3000pcs per month
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Power Adapter Voltage :
AC 110V-240V
POE Ethernet Port :
1～16 Port : 10/100Mbps
Transmission Medium :
Cat5/5e/6 standard network cable
Working temperature :
0℃~55℃
Dimension (L×W×H) :
312mm*185mm*46mm
PoE Standard :
IEEE 802.3af/at
Description

10/100Mbps 16 Port PoE Ethernet Switch with 2*10/100/1000Mbps uplink port and 1 *1000M SFP combo

1. Overview

Newbridge® The switch is a compact 16+3 port PoE Switch,With 16 *10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 1*10/100/1000Mbps SFP Port(combo),13 inch,The 16*PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af/at standard,with a maximum output of 30W each port.

2.Feature

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

l 16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,1 1000M SFP combo

l 13 inch,Desk type or long hanger up to 19 inch

l Support IEEE802.3af/at

l Support restrain network storm, VLAN function

l Support Max Transmission distance up to 250m with PoE Power

l All port supported by MDI/MDIX auto flip and self-negotiation

l Built-in power supply;

l Maximum power of single PoE port: 30 W;

  • Maximum PoE power: 250W;

l Adopts store-and-forward architecture;

l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

  • Support lightning protection 6000V

3．Application Diagram

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

4. Dimensions

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

5. Specifications

Item Description
Power Power Adapter Voltage AC 110V-240V
Consumption 250W(52V,4.8A)

Network Connector

Network Port

 POE Ethernet Port 1～16 Z1ort : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps

SFP Port

SFP Port: 1000Mbps

Transmission Distance

1～16 Port : 100Mbps:0~100m;

10Mbps: 0~250m;
Uplink Port : 0 ~ 100m

SFP: depends on the optical module(20km/40km...)
Transmission Medium Cat5/5e/6 standard network cable

Network Switch

 Network Standard

IEEE802.3/802.3u,

IEEE802.3x,IEEE802.ab
Switching Capacity 7.2Gbps
Packet Buffer Memory 1Mbits
Throughput 5.3568Mbit
MAC Table 2K

Packet Forwarding Rate

10Mbps:14880pps/port

100Mbps:148800pps/port

1000Mbps:1488000pps/port

Power Over Ethernet

 PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W,at=30W

RJ45 port

Port Function

 Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED Indicator

LED Indicator

 LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender

Environmental

 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃

Mechanical

 Dimension (L×W×H) 312mm*185mm*46mm
Color Black
Weight 2.1kg

6. Order Information

Part No Description of product Unit
ND1PD1603FGX 19 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
