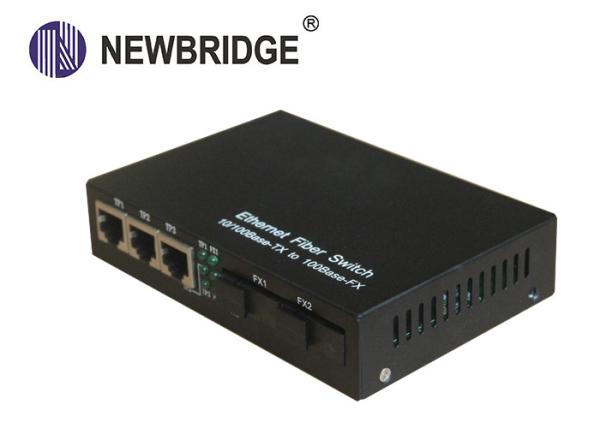

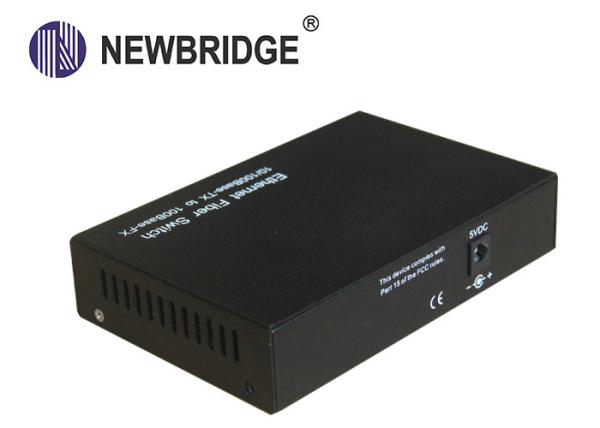

SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-820SW-S20-3
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
tandard :
IEEE802.3,),IEEE802.3u,IEEE802.3x,IEEE802.1q,IEEE802.1p QoS, IEEE802.1d
Buffer Size :
1M
RJ-45 Port :
Auto-MDI/MDIX
Wavelength :
1310/1550nm
MTBF :
50,000 hours
Operating Temperature :
0°C~50°C
Description

10M/100Mbps Single Mode Singel Fiber 1550nm 20KM SC Port Fiber Media Converter

Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics

Feature

♦ 2x3 10/100M IP Switch
♦ 2* 10/100M fiber port ,3 *10/100M RJ45 port ,
♦ Single fiber single mode 1310TX/1550RX,SC,0~20KM,stand alone type,
♦ External power supply,DC/12V,AC/100-240V,
♦ Through the optical fiber cascaded multiple lans

Specification

Standard IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100 BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km)
9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Input Voltage ,DC/12V,AC/100-240V
Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 1K
Buffer Size 1M
Operating Temperature 0°C~50°C
Storage Temperature -40°C~70°C
Storage Humidity 5%~90% non-condescending

Order info

Part No Description of product Unit
ND-820SW-S20-3 10M/100M bps, Single mode,Tx1550nm/Rx1310nm,0-20KM,SC pc
ND-820SW-S20 10M/100M bps, Single mode,Tx1310nm/Rx1550nm,0-20KM,SC pc

SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter

SC Port 10 100M Media Converter 0 - 20km , Single Fiber Single Mode Fiber Media Converter
