10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
10 100M Induatrial Media Converter Dual Power 12V External Power Supply
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-S820SW-2*12
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
power port :
2*DC12V
Dimensions :
69mm×50mm×24mm
Wavelength :
1310nm/1550nm
Power consumption :
2.5 w
Storage temperature :
-40℃～80℃
Case meterial :
Iron shell
Description

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

Model ND-X815MSW
Description 1CH optical port+1CH RJ45+2CH 12Vpower port
Image 10 100M Induatrial Media Converter Dual Power 12V External Power Supply
transmission rate 10/100Mbps
wave length TX1310nm/RX1550nm
transmission distance 0～20km
the fifth twisted-pair transmit distance 0～100m
electrical interface 1×RJ45
fiber connector Single mode single fiber,SC port
power port 2×DC12V
Flow control approach Dynamic data transmission, Full/half duplex
MTBF Over 100,000 hours
Power supply External power supply
Power input AC100 ～ 240V to DC12V input
Power consumption 2.5 w
Storage temperature -40℃～80℃
Case meterial Iron shell
Demension 69mm×50mm×24mm
Weight 0.2KGS

This product for intelligent products, high and low temperature resistance (-40 ℃ ~ 80 ℃), lightning protection, anti-static, small volume, dual DC12V, directly supply power to media converter , and then from the second DC link into the camera, power supply to cameras.

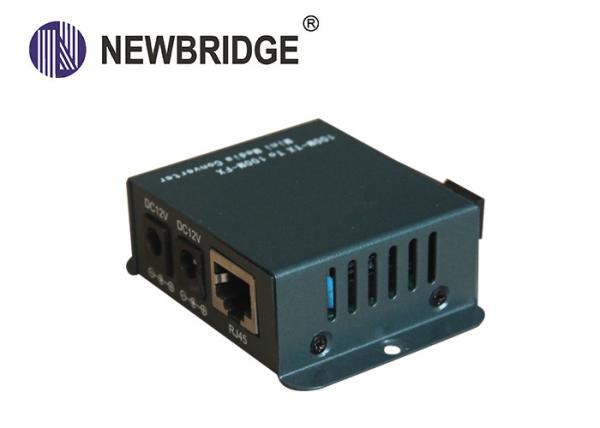

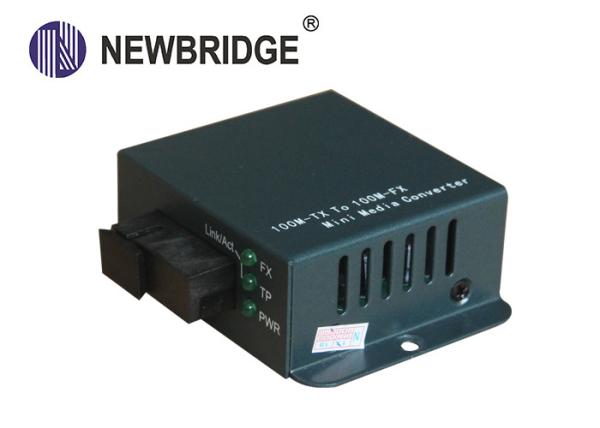

Panel Descriptions :

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

10 100M Induatrial Media Converter Dual Power 12V External Power Supply
