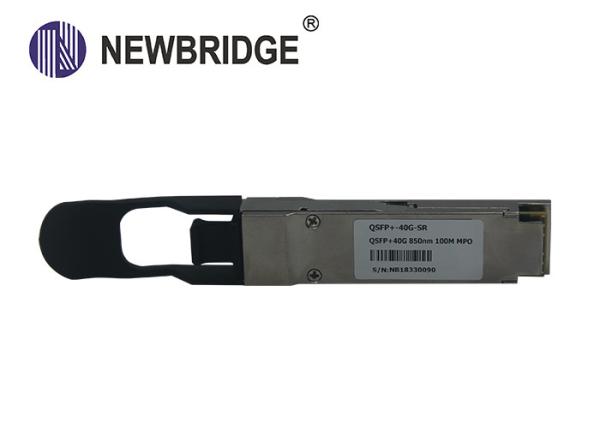

Duplex LC Fiber Optic Transceiver Module 850/900nm 40Gb/s Bidi QSFP+ 3.5 Watt
Duplex LC Fiber Optic Transceiver Module 850/900nm 40Gb/s Bidi QSFP+ 3.5 Watt
Specifications
Brand Name :
NEWBRIDGE
Model Number :
NDQP-40G-SR-BD
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
fiber :
single fiber
Device Type :
optical SFP Module
Data rate :
40G
Operating temperature :
0°C to 70°C
Power Supply :
+3.3V
Low Power consumptionor :
<3.5W
Description

NDQP-40G-SR-BD is a Four-Channel QSFP+ package optical transceiver for 40 Gigabit Ethernet Applications. It multiplexes internally an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving data at 850 and 900nm wavelength, up to the distance of 100m on OM3 / 150m on OM4. It is a high performance module for short-range duplex data communication and interconnection applications.

Features:

  • Four lane aggregated bandwidth up to 40Gbps
  • 10.3125 Gbps per electrical channel with 64b/66b encoded data
  • Hot-pluggable
  • Duplex LC
  • ² 100m on OM3 / 150m on OM4
  • Compliant with QSFP+ SFF-8436 Specification
  • Compliant with QSFP MSA
  • Compliant witch 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
  • Built-in digital diagnostic functions
  • Power Supply :+3.3V
  • Power consumption: <3.5W
  • Temperature Range: 0~ 70°C
  • RoHS Compliant

Applications:

² 40GBASE Ethernet

² Fiber channel

² Data center

Ordering Information:

Part Number Data Rate Distance Wavelength Fiber DDM Connector
SHQP-40G-SR-BD 40Gb/s 100m 850/900nm MM Yes Duplex LC

Absolute Maximum Ratings

Parameter Symbol Min. Typical Max. Unit
Storage Temperature TS -40 +85 °C
Supply Voltage VCCT, R -0.5 4 V
Relative Humidity RH 0 85 %

Recommended Operating Environment:

Parameter Symbol Min. Typical Max. Unit
Case operating Temperature TC -5 +70 °C
Supply Voltage VCCT, R +3.135 +3.465 V
Supply Current ICC 1000 mA
Power Dissipation PD 3.5 W

Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min Typ Max Unit Note
Data Rate per Channel - 10.3125 11.2 Gbps
Power Consumption - 2.5 3.5 W
Supply Current Icc 0.75 1.0 A
Control I/O Voltage-High VIH 2.0 Vcc V
Control I/O Voltage-Low VIL 0 0.7 V
Inter-Channel Skew TSK 150 Ps
RESETL Duration 10 Us
RESETL De-assert time 100 ms
Power On Time 100 ms
Transmitter
Single Ended Output Voltage Tolerance 0.3 4 V 1
Common mode Voltage Tolerance 15 mV
Transmit Input Diff Voltage VI 120 1200 mV
Transmit Input Diff Impedance ZIN 80 100 120
Data Dependent Input Jitter DDJ 0.1 UI
Data input total jitter TJ 0.28 UI
Receiver
Single Ended Output Voltage Tolerance 0.3 4 V
Rx Output Diff Voltage Vo 600 800 mV
Rx Output Rise and Fall Voltage Tr/Tf 35 ps 1
Total Jitter TJ 0.7 UI
Notes: 1. 20%~80%.

Optical Parameters (TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Optical Wavelength Channel 1 λ 832 850 868 nm
Channel 2 882 900 918
Average output power per channel Pavg -4 +5.0 dBm
Laser off power per channel Poff -30 dBm
Optical Extinction Ratio ER 3.5 dB
RMS Spectral width Δλ 0.65 nm
Relative intensity noise RIN -128 Db/Hz 1
Optical return Loss tolerance 12 dB
Receiver
Optical Wavelength Channel 1 λ 882 900 918 nm
Channel 2 832 850 868
Receiver Sensitivity per channel Sen -11 dBm 1
Maximum Input Power PMAX 0.5 dBm
Receiver reflectance Rrx 30 -12 dB
LOS De-Assert LOSD -14 dBm
LOS Assert LOSA -30 dBm
LOS Hysteresis LOSH 0.5 dB
Notes: 1. 12dB reflection.

Pin Function Definitions

Pin Logic Symbol Name/Description Note
1 GND Ground 1
2 CML-I Tx2n Transmitter Inverted Data Input
3 CML-I Tx2p Transmitter Non-Inverted Data output
Page: 3 / 9
SH LINK CO., LIMITED |Optical Transceiver Datasheet|
4 GND Ground 1
5 CML-I Tx4n Transmitter Inverted Data Output
6 CML-I Tx4p Transmitter Non-Inverted Data Output
7 GND Ground 1
8 LVTTL-I ModSelL Module Select
9 LVTTL-I ResetL Module Reset
10 VccRx +3.3V Power Supply Receiver 2
11 LVCMOS-I/O SCL 2-Wire Serial Interface Clock
12 LVCMOS-I/O SDA 2-Wire Serial Interface Data
13 GND Ground 1
14 CML-O Rx3p Receiver Inverted Data Output
15 CML-O Rx3n Receiver Non-Inverted Data Output
16 GND Ground 1
17 CML-O Rx1p Receiver Inverted Data Output
18 CML-O Rx1n Receiver Non-Inverted Data Output
19 GND Ground 1
20 GND Ground 1
21 CML-O Rx2n Receiver Inverted Data Output
22 CML-O Rx2p Receiver Non-Inverted Data Output
23 GND Ground 1
24 CML-O Rx4n Receiver Inverted Data Output
25 CML-O Rx4p Receiver Non-Inverted Data Output
26 GND Ground 1
27 LVTTL-O ModPrsL Module Present
28 LVTTL-O IntL Interrupt
29 VccTx +3.3V Power Supply Transmitter 2
30 Vcc1 +3.3V Power Supply 2
31 LVTTL-I LPMode Low Power Mode
32 GND Ground 1
33 CML-I Tx3p Transmitter Inverted Data Output
34 CML-I Tx3n Transmitter Non-Inverted Data Output
35 GND Ground 1
36 CML-I Tx1p Transmitter Inverted Data Output
37 CML-I Tx1n Transmitter Non-Inverted Data Output
38 GND Ground 1
