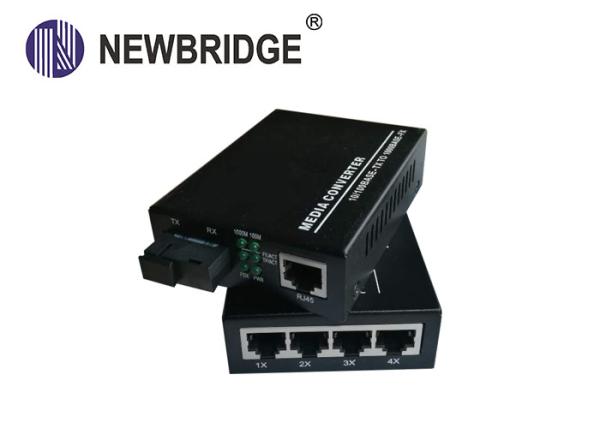

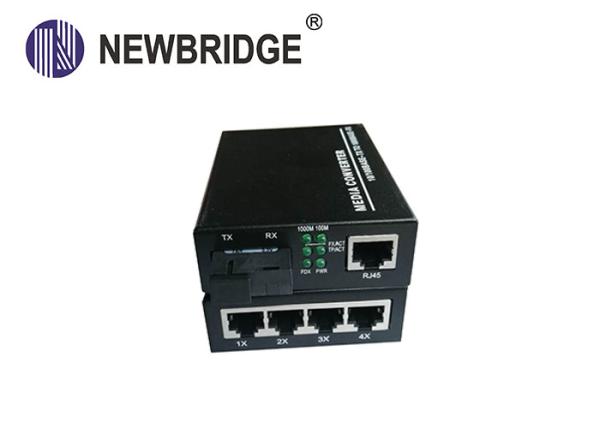

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-920SW-S20-4
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
Power dissipation :
＜2.5W
Fiber Connector :
SC standard, ST/FC optional
fiber distance :
20KM
power supply :
DC 5V,AC 100-240V;
UTP Rate :
10/100M
MTBF :
50000 hours
Description

4*10/100/1000Base-TX Switch over Fiber Cable, gigabit 4rj45 4 port fiber optic media converter

1. Overview

Newbridge® The seriels optical fiber transceiver(switch) is a new type of high performance transmission equipment developed and produced .All equipment and system performance indicators meet international standards and meet your technical requirements.This series of optical fiber transceivers is designed for urban fiber digital broadband network. The product is positioned in the broadband network access market based on the design idea of high quality, high reliability, high bandwidth and low price.It can provide users with broadband bandwidth, stable performance, powerful functions, and low cost urban broadband fiber network solutions for telecom level operation services.

2.Feature

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
  • 1*1000M SC fiber interface (FC/LC optical port can be customized); 4*10/100M Ethernet interfaces
  • Maximum transmission distance: 0.5 ~ 120 km.
  • The dynamic buffer allocation in front equalizes the network load and prevents blocking.
  • adopt IEEE802.3 10BaseT Ethernet and IEEE802.3u 100base-tx,IEEE802.3ab 1000base-tx and 1000base-fx fast Ethernet standards;
  • Each UTP exchange port of the exchange port can automatically recognize the straight line (MDI) and the cross line (mdi-x).
  • Support 1024 MAC addresses;
  • Automatic MAC address learning and update function.
  • select store-and-forward
  • Ballast provides maximum 8G data storage bandwidth;
  • Enable LED indicator light to monitor the working status of each port

3．Application Diagram

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable

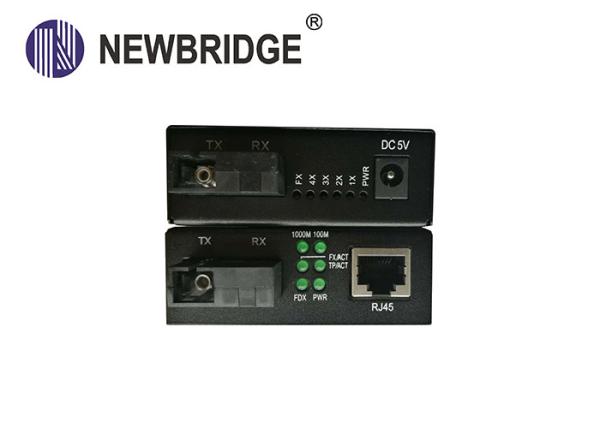

  • Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber CablePanel

5. Specifications

Parameters Specification
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Rj45 port 4 Rj45 port 10/100/1000Base-T(X) auto negotiation speed, Full/Half duplex mode, Auto MDI-MDI-X connection
Up to 100M Cat-5 transmission distance
Fiber port 1 Fiber Port
Comply with IEEE802.3z
Rate: 1000Mbps
Wavelength: 850/nm1310nm/1550nm
Up to 550M transmission distance with multi-mode
Up to 20km,40km,60km,80km transmission distance with single-mode SC/LC interfaces optional
Switch Properties

Mac address table:1k

Memory buffer:256K

Acket Buffer Size: 1Mbit

Processing Type: Store and Forward
Power Supply

External : DC/5V2A

Built-in: 90 V to 240 V AC 50Hz to 60 Hz

Power Consumption : ≤5W
Operating Temperature 0 °C to +65 °C
Storage Temperature -20 °C to +65 °C
Relative Humidity 5% to 90% (non-condensing)
Dimensions 95mm * 70 mm * 25mm
Weight 165g

6. Order Information

Part No Specification Description Unit
ND-920SW-S20-4 10/100/1000M bit/s Single-mode 1310nm,20KM,SC,1*9,220V/AC,5V2A/DC,1*1000Base-Fx+4*10/100Base-Tx PC

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
