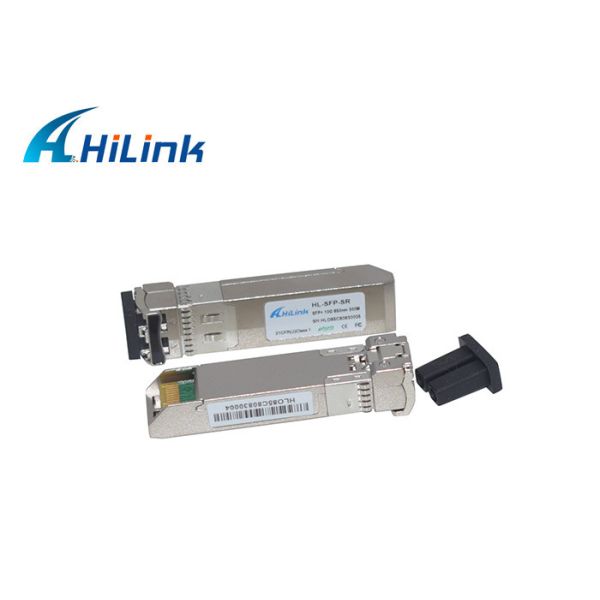

10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
Specifications
Brand Name :
HILINK
Model Number :
HL-SFP10G-SR
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Wavelength :
850nm
Mode :
Multi-mode
Transfer rate :
10Ge
DDM :
Yes
Connector :
Dual LC
Key word :
SFP-10G-SR
Description

Hilink 10Gb/s SFP 10G SR serial optical interface compliant to 802.3ae 10GBASE-SR, with Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+” 850nm VCSEL transmitter, PIN photo-detector

Product Features:

♦ Optical interface compliant to IEEE 802.3ae

♦ Electrical interface compliant to SFF-8431

♦ Hot-Pluggable

♦ 850nm VCSEL transmitter,PIN photo-detector

♦ Low power consumption, below 1W

♦ Applicable for 300m MMF connection

♦ All-metal housing for superior EMI performance

♦ Advanced firmware allow customer system encryption information to be stored in transceiver

♦ Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Application

♦ 10GBASE-SR at 10.3125Gbps

♦ 10GBASE-SW at 9.953Gbps

♦ Other optical links

Quick Detail Specification:

Part Nuber HL-SFP-10G-SR
Datarate 8G~10Gb/s
Wavelenght 850nm
Distance 300meter
Transmitter VCSEL
Receiver PIN
DDM/DOM Yes
Media MMF
Operating Temperature 0°C to +75°C
Available Compatible Brand Cisco,Alcatel-Lucent,HP CIENA,Juniper,Huawei etc...

Following is the series of 10G SFP

CISCO P/N Description
SFP-10G-SR Cisco 10GBASE-SR SFP+ Module for MMF
SFP-10G-SR-X Cisco 10GBASE-SR SFP+ Module for MMF, Extended temperature range
SFP-10G-LRM Cisco 10GBASE-LRM SFP+ Module for MMF and SMF
SFP-10G-LR Cisco 10GBASE-LR SFP+ Module for SMF
SFP-10G-LR-X Cisco multirate 10GBASE-LR, 10GBASE-LW SMF, extended temperature range
SFP-10G-ER Cisco 10GBASE-ER SFP+ Module for SMF
SFP-10G-ZR Cisco 10GBASE-ZR SFP+ Module for SMF
SFP-10G-BXD-I Cisco 10GBASE-BX10-D Bidirectional for 10km
SFP-10G-BXU-I Cisco 10GBASE-BX10-U Bidirectional for 10km
SFP-10G-BX40D-I Cisco 10GBASE-BX40-D Bidirectional for 40km
SFP-10G-BX40U-I Cisco 10GBASE-BX40-U Bidirectional for 40km

10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex10GBASE-SR 10 gig Juniper SFP Modules 850nm Wavelength MMF 300 Meter LC Duplex
