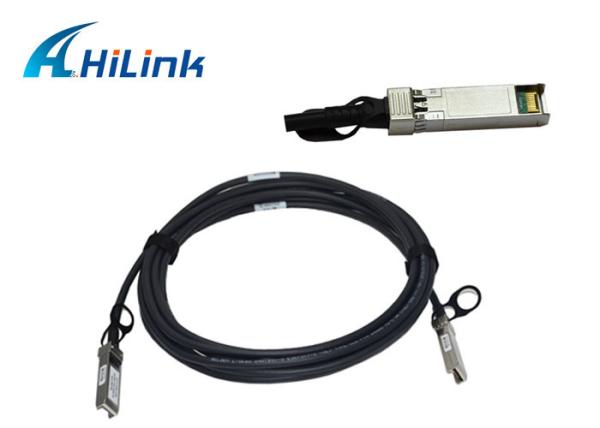

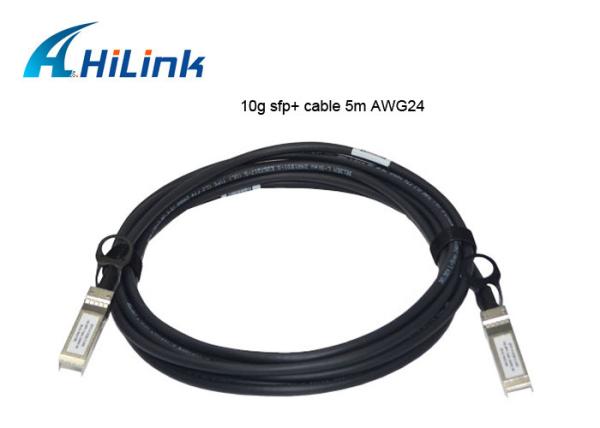

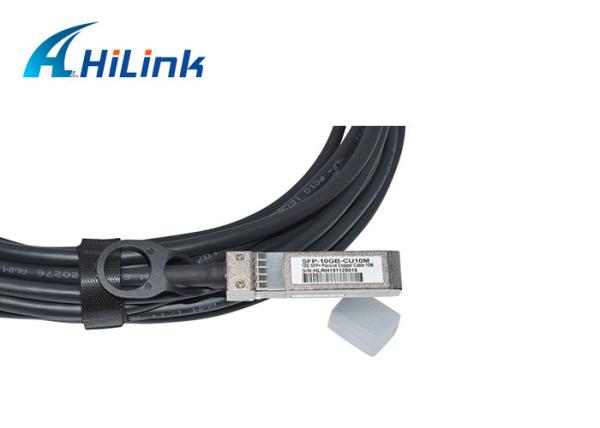

5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
Specifications
Brand Name :
HILINK
Model Number :
HL-SFP-H10GB-CU5M
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Static bag, Plastic bag, Retail box or by required
Price :
Negotiable
Product name :
SFP-H10GB-CU5M
Data transfer rate :
10.5G
Length :
0.5m,1m,2m,3m,4m,5m
Jacket Material :
PVC
Connector :
SFP+/SFP+
Operating Temperature :
0°C to +70°C
Warranty :
1 year
RoHS :
Compliant
Description

5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.

Features

  • Support for multi-gigabit data rates up to 10.5Gbps
  • Data rates backward compatible to 1Gbps
  • Hot-pluggable SFP 20PIN footprint
  • I/O Connector designed for high speed
  • Differential signal applications
  • Improved Pluggable Form Factor(IPF)
  • Compliant for enhanced EMI/EMC performance
  • Compatible to SFP+ MSA
  • Temperature Range: 0~ 70 °C
  • RoHS Compatible

Specification

Cisco Genuine SFP-H10GB-CU*M Vendor Name Hilink
Connector Type SFP+ to SFP+ Max Data Rate 10Gbps
Cable Type Passive Copper Cable Wire AWG AWG30/AWG24
Cable Length 0.5m-5m Jacket Material PVC(OFNR)
Temperature 0 to 70°C Compatibility Cisco/Huawei/Mikrotik etc


Applications

● 10Gigabit Ethernet
● Data center cabling infrastructure
● Storage Area Networks( SAN)
● Network Attached Storage
● Storage Servers
● 1G/2G/4G/8G Fiber Channel

Standards Compliance:
  • Electrical: SFF-8431, SFF-8083
  • Mechanical: SFF-8432
  • EEPROM: SFF-8472

10G SFP+ Copper Cables

Part Number Product Description
HL-SFP-10G-CU1M SFP+ Direct Attach Passive Copper Cable 1 Meter
HL-SFP-10G-CU3M SFP+ Direct Attach Passive Copper Cable 3 Meter
HL-SFP-10G-CU5M SFP+ Direct Attach Passive Copper Cable 5 Meter
HL-SFP-10G-CU7M SFP+ Direct Attach Active Copper Cable 7 Meter
HL-SFP-10G-CU10M SFP+ Direct Attach Active Copper Cable 10 Meter

Related Products:
SFP+ DAC cable for Cisco
for Cisco SFP-H10GB-CU1M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 1-Meter
for Cisco SFP-H10GB-CU3M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 3-Meters
for Cisco SFP-H10GB-CU5M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 5-Meters
for Cisco SFP-H10GB-ACU7M, 10Gbps, SFP+ Twinax, active cable, 7-Meters
for Cisco SFP-H10GB-ACU10M, 10Gbps, SFP+ Twinax, active cable, 10-Meters

5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
