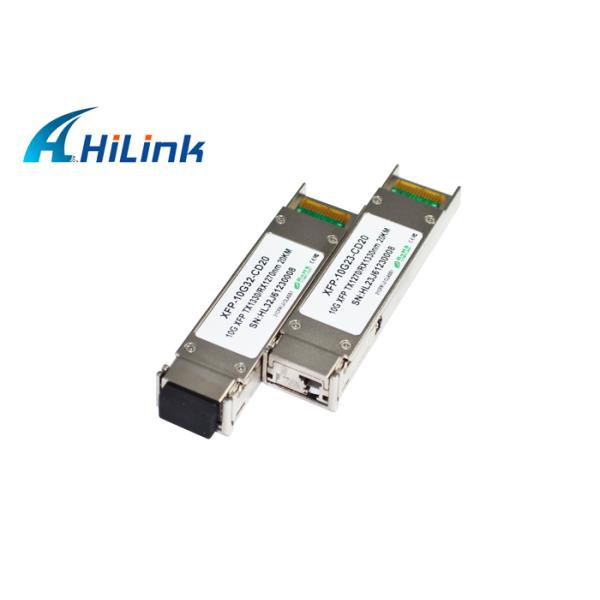

WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
Specifications
Brand Name :
HILINK
Model Number :
HL-XFP-WDM
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
500/pair/month
Packaging Details :
Poly bag
Data Rate :
10G
Wavelength :
1270/1330nm
Transfer distance :
20km
Connector :
LC
DDM :
Yes
Description

WDM 1330/1270nm BIDI XFP Single Fiber Transceiver 10G Module 20KM

PRODUCT FEATURES

Compatible Brand Cisco Juniper Mikrotik .. Vendor Name Hilink
Form Type XFP Max Data Rate 10Gbps
Wavelength 1270nm/1330nm Max Cable Distance 20km
Interface LC simplex Optical Components DFB BiDi
Cable Type SMF DOM Support Yes
TX Power -7~0.5dBm Receiver Sensitivity < -13dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000

APPLICATIONS

10GBASE-BX 10.3125Gb/s Ethernet

10GBASE-BX 9.953Gb/s Ethernet

SONETOC-192&SDHSTMI-64.

PRODUCT DESCRIPTION

XFP BIDI 20KM is hot pluggable 3.3V XFP Form transceiver module.

It designed expressly for high-speed communication applications that require rates upto 11.3Gb/s,

it designed to be compliant with XFP MSA Agreement.

WDM XFP 20km Optical Parameter

Parameter Symbol Min Typ Max Unit
Maximum Launch Power PMAX -6 -3 +0.5 dBm
Optical Center Wavelength UBXFP-20-U λ 1260 1270 1280 nm
UBXFP-20-D 1320 1330 1340
Optical Extinction Ratio ER 3.5 dB
Spectral Width Δλ 1 nm
Sidemode Supression ratio SSRmin 30 dB
Rise/Fall Time (20%~80%) Tr/Tf 50 ps
Optical Eye Mask IEEE802.3ae
Operating Date Rate BR 9.95 11.3 Gb/s
Receiver Sensitivity Sen -13.4 dBm
Maximum Input Power PMAX 0 dBm
Optical Center Wavelength UBXFP-20-U λC 1320 1330 1340 nm
UBXFP-20-D 1260 1270 1280
Receiver Reflectance Rrx -13 dB
LOS De-Assert LOSD -14 dBm
LOS Assert LOSA -30 dBm
LOS Hysteresis LOSH 0.5 5

dB



Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM

WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
