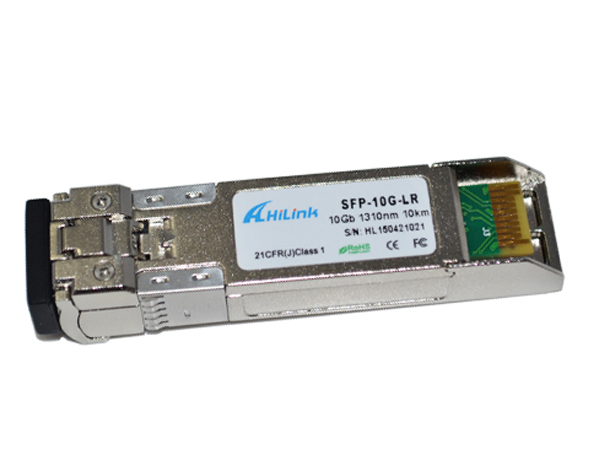

LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
Specifications
Brand Name :
HILINK
Model Number :
HL-SFP-10G-LR
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000pcs/Month
Delivery Time :
2-5working days
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Product name :
10G-SFP-LR
Data Rate :
10G
Wavelength :
1310nm
Distance :
20Km
DDM :
Yes
Connector type :
LC
Description

LC Connector Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km

Feature

  • Duplex LC Connector
  • Hot-pluggable SFP+ footprint
  • Supports 9.95 to 10.3 Gb/s bitrates
  • Power dissipation < 1W
  • Metal with lower EMI
  • Excellent ESD protection
  • DFB Transmitter and PIN Receiver
  • Typical Center Wavelength:1310nm
  • Max link length up to 10Km on SMF
  • RoHS Compliant and Lead-Free
  • Digital diagnostic compatible with SFF-8472
  • Case Operation Temperature:-5℃~+70℃
  • Single 3.3V power supply and Low power

  • Advanced firmware allow customer system encryption information to be stored in

    transceiver


Application

  • 10GBASE-LR/LW 10G Ethernet
  • Performance Specifications
  • Absolute maximum rating
  • Exceeding the limits below may damage the transceiver module permanently. ​

Description

SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5

Parameter

Datarate 10Gbps Fiber Type SMF
Transmitter DFB Receiver PIN
Distance 20Km Wavelenth 1310nm
DDM/DOM Yes Connector LC
Voltage Supply 3.3V Compatibility Cisco/Huawei/Mikrotik etc
Operating Temperature 0℃~ +70℃ Certification CE/FCC/RoHS

SFP+ Transceivers

Cisco Part Number Application Data Rate Wavelength Distance

Connector

Type

SFP-10G-SR SFP+ 10GBASE-SR 10G 850nm 300m LC
SFP-10G-LR SFP+ 10GBASE-LR 10G 1310nm 10km LC
SFP-10G-LRM SFP+ 10GBASE-LRM 10G 1310nm 220m LC
SFP-10G-ER SFP+ 10GBASE-ER 10G 1550nm 40km LC
SFP-10G-ZR SFP+ 10GBASE-ER 10G 1550nm 80km LC

LC Connectors Dual Fiber Singlemode Fiber DDM 10G SFP LR 1310nm 20Km
