HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM
HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM
HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM
HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM
Specifications
Brand Name :
HILINK
Model Number :
HL-QSFP28-100G-FR1
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000 pairs per Week
Delivery Time :
1-4 days
Packaging Details :
Carton box, Retail box, Or by required
Data transfer rate :
100Gbps
Wavelength 1 :
1310nm
Max Distance :
2KM
Type :
SMF
Interface :
Dual LC Connector
CE FCC :
Support
Description

HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

General

This product is a transceiver module designed for 2km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 3.5W.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

QSFP28 MSA compliant
Supports 53.125Gbaud
100G Lambda MSA 100G-FR Specification compliant
Up to 2km transmission on single mode fiber (SMF) with FEC
Operating case temperature: 0 to 70℃
4x25G electrical interface (OIF CEI-28G- VSR)
Maximum power consumption 4.5W
LC duplex connector
RoHS compliant

Application

Data Center Interconnect
100G Ethernet
Enterprise networking
Order Information

Fiber Type Single Mode Connector Type LC/UPC
Model Number HL-QSFP28-100G-FR1 Brand Name Hilink
Origin Mainland China Certification CE,FCC,RoHS
Place of origin Guangdong,China Data transfer rate 100G
Wavelength 1310nm Distance 2KM
Fiber Connector Dulplex LC Fiber Mode SMF
power consumption < 1.8W CE RoHS Compliant
Warranty 3 years Application FTTX

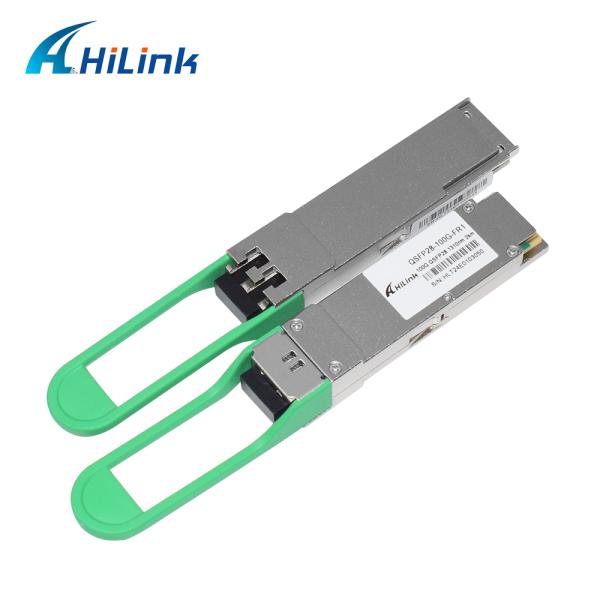

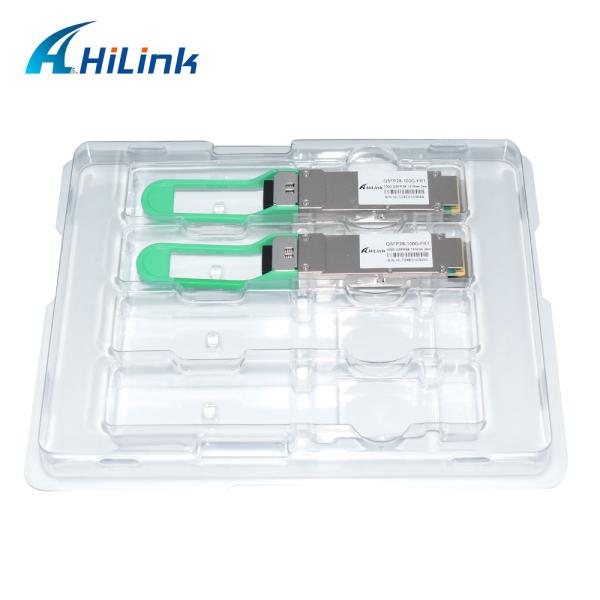

Product Picture Show
HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOMHL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOMHL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

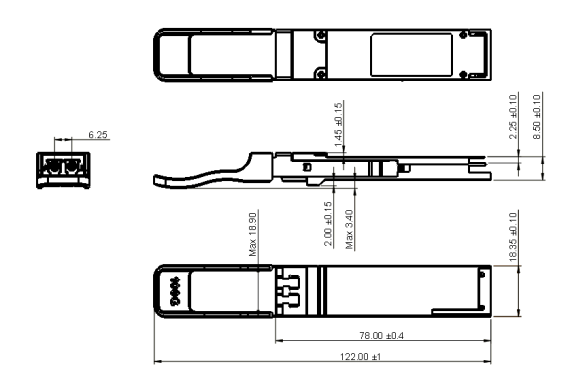

Package Dimensions

.HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

FAQ

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will reply shortly.
