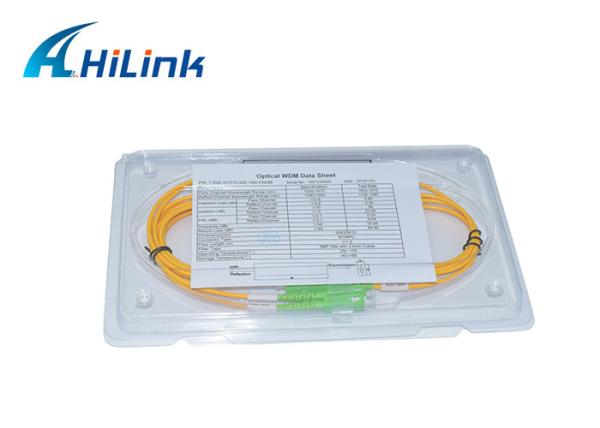

CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
Specifications
Brand Name :
HILINK
Model Number :
HL-FWDM
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiations
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Packaging Details :
box & carton or customized package
Product Name :
FWDM
Wavelength :
T1600-1670 R1290-1580nm
Connector :
LC/SC/FC/ST
Warranty :
2 years
Feature :
High Channel Isolation
Name :
CATV FWDM WDM Fiber Optic
Description

CATV FWDM WDM Fiber Optic High Stability T1600-1670 R1290-1580nm Module

Features

Wide Wavelength Range

Low Insertion Loss

WDM system

High Channel Isolation

High stability and reliability

Applications

System Monitoring

WDM system

Transmitters and Fiber

Fiber optical amplifier

Fiberoptic lnstruments

FWDM Parameter

Parameter FWDM 4/35 FWDM 5/35 FWDM 35/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm) 1260 ~ 1360 1260 ~ 1360 1540~1560
Reflection Band1 Wavelength Range (nm) 1540~1560 1480~1500
Insertion Loss (dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Pass Band Rippler(dB) <0.3
Isolation (dB) Reflect Channel > 15
Pass Channel >30
Insertion Loss Temperature Sensitivity (dB/°C) <0.005
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >50
Maximum Power Handling (mW) 500
Operating Temperature (°C) -20 ~+70
Storage Temperature (°C) -40 ~+85
Package Dimension (mm)

1. Φ5.5 x L34(for 900um Loose tube or bare fiber ))

2. L90xW20xH9.5(for 2.0 or 3.0mm Cable)

CATV FWDM WDM Fiber Optic T1600-1670 R1290-1580nm Module High Channel Isolation
