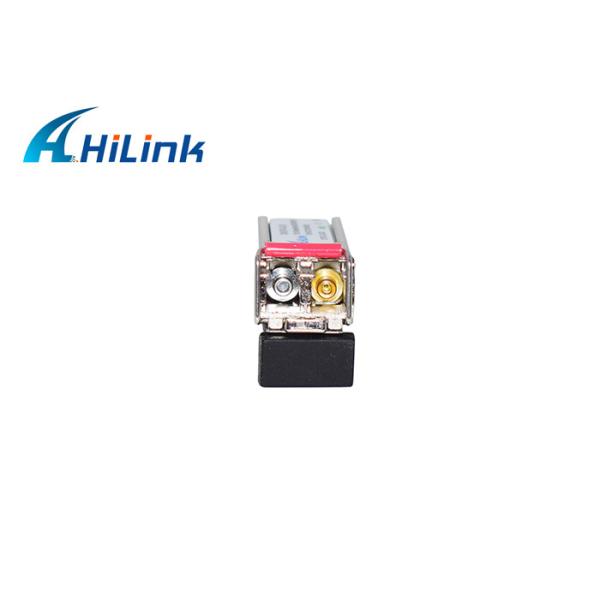

CWDM 1270-1610nm 1.25G 80KM SFP SMF Transceiver 1000base

Specifications

Brand Name :

HILINK

Model Number :

1.25G-CWDM-80D

Certification :

CE FCC Rohs

Place of Origin :

Guangdong, China

MOQ :

1pcs

Price :

Negotiable

Payment Terms :

T/T, Western Union

Delivery Time :

1-3 days

Packaging Details :

Blister Packaging, 10pcs/ tray

Data Rate :

1.25Gbps

Wavelength nm :

1270nm-1610nm

Transfer Distance :

80km SMF

RX Sensi :

≤-24dBm

Connector :

Dual LC

Warranty :

3 years

DOM :

Yes

Description

CWDM 1270nm-1610nm 1.25G 80KM SFP SMF Transceiver 1000base Duplex LC Connector Wavelength Division Multiplexing

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

80km CWDM SFP

Features:

From 1.25G 2.5Gbps to 10Gbps CWDM optical transceiver
Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates

Wavelength selectable to ITU-T standards covering

Link length up to80km

APD for 80km

CWDM Grid wavelength

Low Power Dissipation 1.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring

RoHS compliant and lead free

CWDM PON network including 10G CWDM XFP/SFP+ 10g CWDM X2/XENPAK

Applications:

CWDM upto 10GBASE-ZR/ZW (with/without FEC)

ATM SDH/SONET

CWDM PON network

CWDM Series

CWDM SFP/GBIC
CWDM SFP 1G/2G	(1270-1610nm)	40/80/120km	CWDM SFP	0~70
CWDM GBIC 1.25G	(1270-1610nm)	40/80/120km	CWDM GBIC	0~70
CWDM XFP(10G)
CWDM XFP LR	(1270-1330nm)	10KM	CWDM XFP	0~70
CWDM XFP ER	(1470-1610nm)	40KM	CWDM XFP	0~70
CWDM XFP ZR	(1470-1610nm)	80KM	CWDM XFP	0~70
CWDM SFP+(10G)
CWDM SFP 10G LR	(1270-1330nm)	10KM	CWDM SFP+	0~70
CWDM SFP ER	(1470-1610nm)	40KM	CWDM SFP+	0~70
CWDM SFP ZR	(1470-1610nm)	80KM	CWDM SFP+	0~70
CWDM XENPAK(10G)
CWDM XENPAK ER	1470nm~1610nm	40KM	CWDM XENPAK	0~70
CWDM XENPAK ZR	1470nm~1610nm	80KM	CWDM XENPAK	0~70
CWDM X2 (10G)
CWDM X2 -ERC	1470nm~1610nm	40KM	CWDM X2	0~70
CWDM X2-ZRC	1470nm~1610nm	80KM	CWDM X2	0~70

The schematic diagram is for reference only. If you have any questions, please contact customer service

CWDM 1270-1610nm 1.25G 80KM SFP SMF Transceiver 1000base

* Please leave us a message about the brand your switch is compatible with.Then we will match the code for you .

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.

FEATURES :

Product Name	CWSFP-1410-80D	Vendor Name	HiLink
Form Type	SFP	Max Data Rate	1000Mbps
Wavelength	1410nm	Max Cable Distance	80km
Interface	LC Duplex	Optical Components	DFB CWDM+PIN CWDM
Cable Type	SMF	DOM Support	Yes
TX Power	0~5dBm	Receiver Sensitivity	<-25dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Power Supply	+3.3V

RELEVANT SOLUTION :

CWDM 1270-1610nm 1.25G 80KM SFP SMF Transceiver 1000base

PRODUCT SHOW :

CWDM 1270-1610nm 1.25G 80KM SFP SMF Transceiver 1000base
