1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC
1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC
1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC
1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC
Specifications
Brand Name :
Hilink
Model Number :
HL-DWDM-8CH
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200PCS/month
Packaging Details :
Plastic packaging, Carton
Product Name :
8CH DWDM Mux Demux
Chassis :
1U 19" standard
Channel Wavelength :
ITU Grid
Connector :
LC/UPC
Fiber Length :
0.7M ( or customized)
Operating Temperature :
-20 to +70℃
Description

1U Rack Mount 8CH DWDM Mux Demux Dual Fiber with LC UPC, IL<2.8dB

Product Description

DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.

DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

Features

* C Band
* 2-44 channels DWDM Mux/Demux (CH17-CH61)
* Channel spacing: 0.8nm(100GHz Grid)
* Com port is simplex
* Protocol transparent (10Mbps to 100Gbps)
* Low insertion loss
* Excellent channel isolation
* Epoxy-free optical path
* Compliant to G.657A1 standard
* ISO 9001 manufacturing facility
* Wide Operating Temperature: -20~+70℃

1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC

Applications

* Channel Add/Drop
* DWDM Network
* Wavelength Routing
* Fiber Optical Amplifier
* CATV System

Order Information

HL Channel Spacing Channel Number Configuration 1st Channel Fiber Type Fiber Length Connector
Hilink

1=100GHz

2=200GHZ

4=4-Channel

8=8-Channel

16=16-Channel

32=32-Channel

M=Mux

D=Demux

21=1560.61nm

22=1559.79nm

23=1558.98nm…

1=Bare fiber

2=900um Jacket

1=1 Meter

2=2 Meter

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

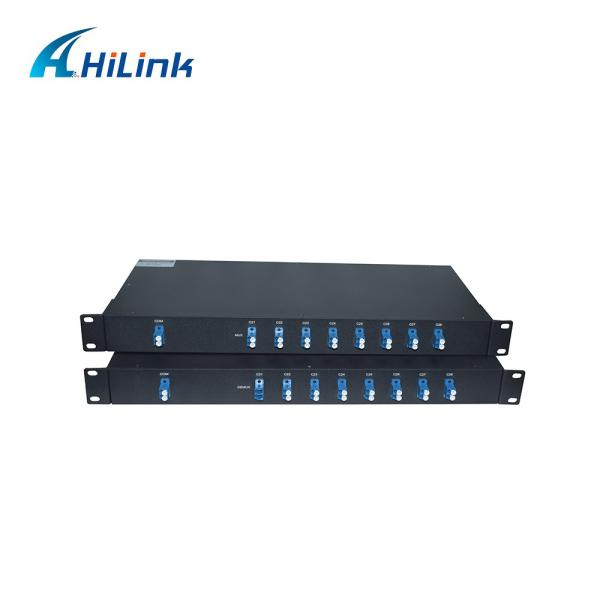

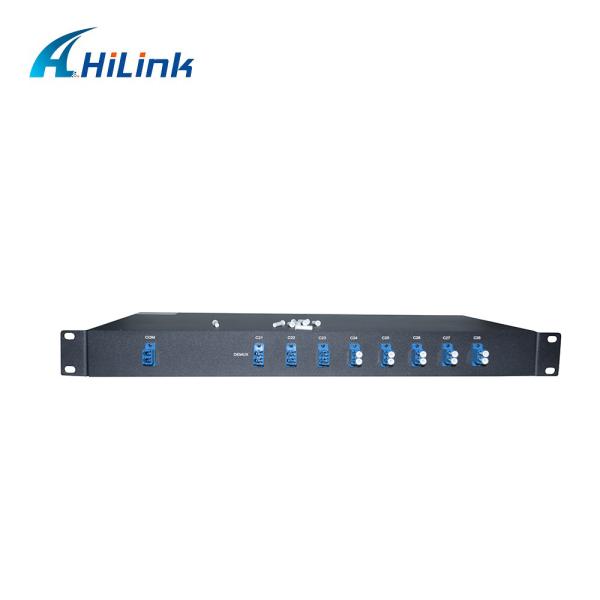

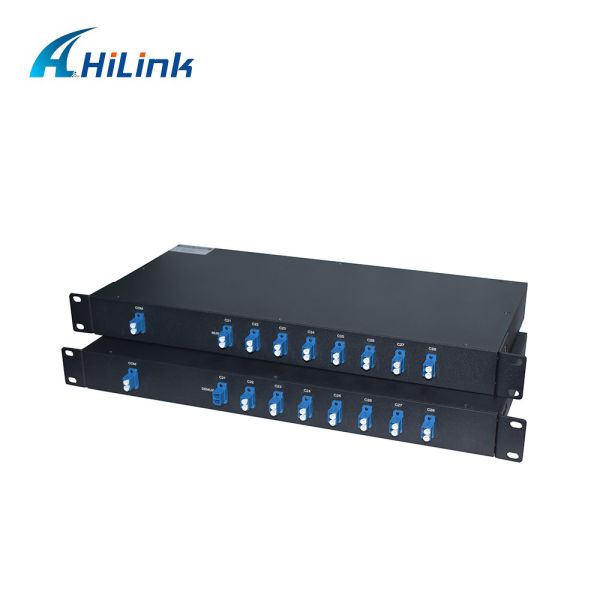

Details Images

1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC

Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
