High Reliability 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box
High Reliability 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box
Specifications
Brand Name :
Hilink
Model Number :
1*16 PLC splitter
Certification :
CE Rohs
Place of Origin :
China
MOQ :
1 pieces
Price :
Need to negotiate
Payment Terms :
T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability :
2000 Pieces/Week
Delivery Time :
5-8 working day
Packaging Details :
Plastic box+Carton
Condition :
Brand new
Use :
Data Center
Fiber Type :
G657A
Connector :
LC/APC
Key word :
PLC splitter
CE RoHS :
compliant
Description

Hilink High Reliability And Stability And 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box

Specifications

1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Dimension (mm) (L×W×H) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4
Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18
Mini-Module Dimension (mm) (L×W×H) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 N/A

Notes:

Specified without connectors.

Add additional 0.2dB loss per connector.

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and it is widely used in PON networks to realize optical signal power splitting. 3c-link provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-COREstandards.

Features:

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength:

From 1260nm to 1650nm

Wide Operating Temperature:

From -40°C to 85°C

High Reliability and Stability

Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

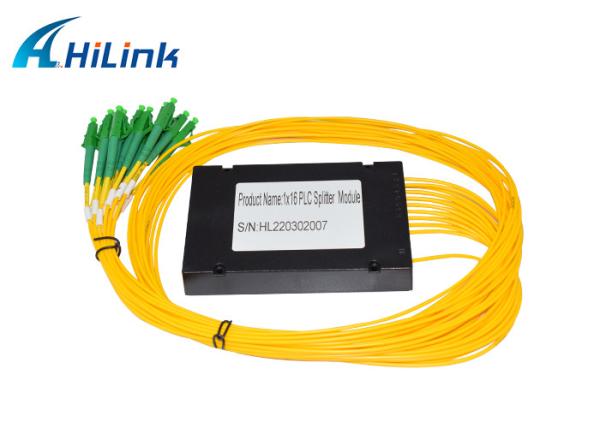

Real Picture

High Reliability 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box

Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton
Delivery time:3-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Our Service

Accept OEM& ODM

Hilink specialized in fiber optic module more than 10 years

Use Brand New Material

Fast delivery

3 Year Warranty

Strong Technicial Support

Guarantee
High quality is our life. We promise all the advertised products are brand new. We absolutely never use old and refurbished materials. Any faulty items can be returned during the warranty time

FAQ

1. Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.

2. Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

3. Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

4. Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

5. Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

We have many different kinds of products, if you do not find the link u needed, can click on the left and contact us button, we will reply u ASAP, And provided what you needed.
