SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M
SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M
SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M
SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M
Specifications
Brand Name :
HILINK
Model Number :
HL-SFP-10G-AOC
Certification :
CE FCC RoHS
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Delivery Time :
3~5working days
Packaging Details :
Blister box, Plastic packaging, Carton
Key words :
SFP+ to SFP+ 10G AOC
Form factor :
SFP+ to SFP+
Fiber type :
OM3 (optional)
Fiber Length :
3M ( or customised)
Fiber color :
aqua
Warranty :
3 years
Description

SFP+ to SFP+ 10G OM3 Active Optical Cable Direct-attach AOC Cables 1~100M

General Description

Hilink's 10G SFP+ AOC active optical direct-attach cables are designed for high speed, high density and low power consumption for today’s data center networking applications. They are suitable for very short distances and offer a very cost-effective way to establish a 10-gigabit link between SFP+ ports of switches within racks and across adjacent racks.

The 10G SFP+ AOC cables are composed of SFP+ optical transceivers in both ends and OM3 multimode fiber cable in different cable length from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings friendly and intuitive electrical-to-electrical interface to users.

SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M

Features

  • Support 10GBASE-SR/10G Fiber Channel application
  • Compliant to SFP+ Electrical MSA SFF-8431
  • Compliant to SFP+ Mechanical MSA SFF-8432
  • Multi rate of up to 11.3Gbps
  • Transmission distance up to 150m (OM3)
  • +3.3V single power supply
  • Low power consumption
  • Operating case temp Commercial: 0°C to +70 °C
  • RoHS compliant
  • Password protection for A0h and A2h

Parameter Symbol Unit Min Typ Max Notes
Optical transmitter Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Center Wavelength Range λc nm 820 850 880
Laser Off Power Poff dBm - - -45
Launch Optical Power P0 dBm -6.0 1
Extinction Ratio ER dB 3 - -
Spectral Width(RMS) RMS nm - 0.45
Optical Receiver Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Bit Error Rate BER dBm - - E-12 2
Overload Input Optical PIN dBm 2.4 - - 2
Power
Center Wavelength Range λc nm 820 - 880
Receiver Sensitivity in Average Power Sen dBm - - -9.9
Los Assert LosA dBm -26 - -
Los De-Assert LosD dBm - - -12
Los Hysteresis LosH dB 0.5 - -

Note: 1. Coupled into 50/125 MMF.

2. Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=10E-12

Applications

  • 10GBASE-SR at 10.31Gbps
  • InfiniBand QDR, SDR, DDR
  • Other optical links

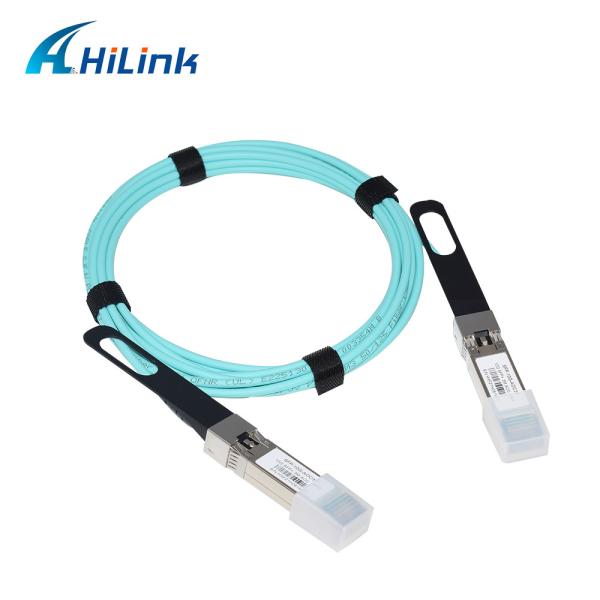

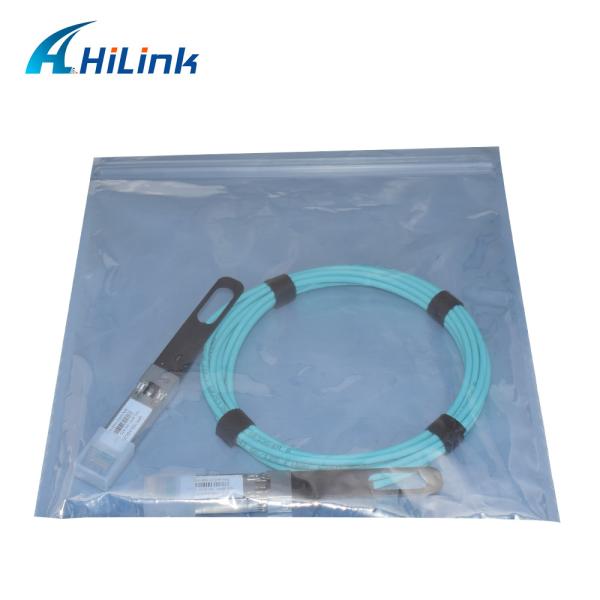

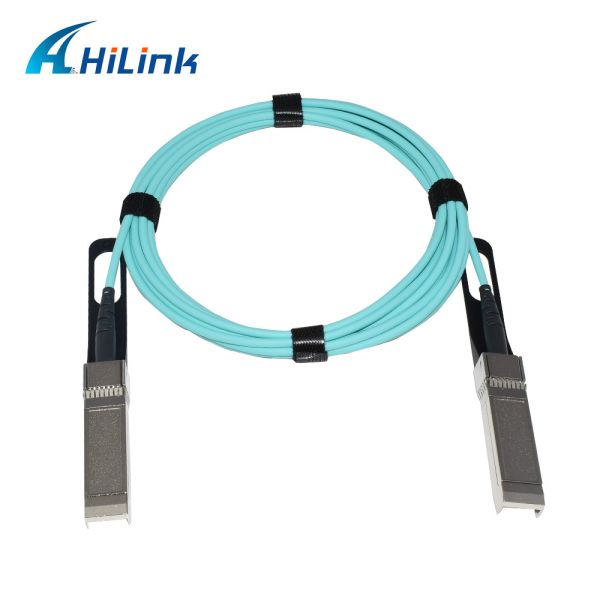

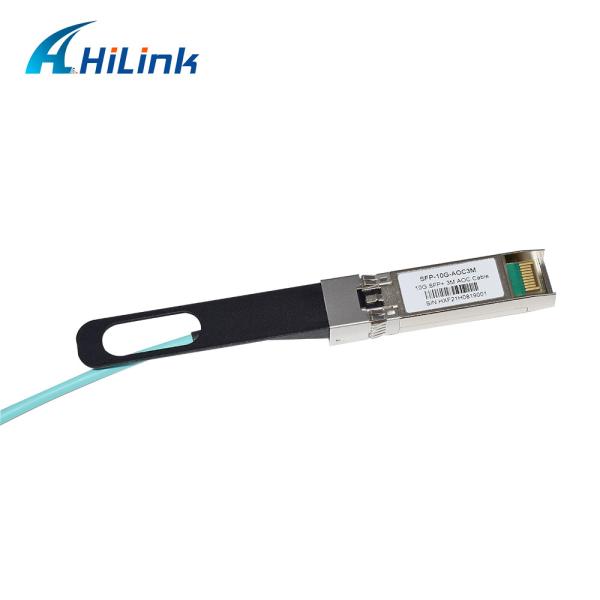

Details Images

SFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100MSFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100MSFP+ To SFP+ 10G OM3 Active Optical Cable Direct Attach 10G AOC Cable 1 - 100M

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
