120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
Specifications
Brand Name :
HILINK
Model Number :
10G-ZR-1550-120KM
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
1-3 days
Packaging Details :
Blister Packaging, 10pcs/ tray
Data Rate :
10Gbps
Wavelength nm :
1550NM
Transfer Distance :
120km SMF
Connector :
Duplex LC
DDM :
yes
Warranty :
3 years
Description

10G-ZR-120KM SFP+ 120KM LC 1550nm Fiber SMF Optical Transceiver Module

Features:

0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)

Supports 9.95 to 11.3Gb/s bit rates

Duplex LC connector

1550nm cooled CML transmitter, APD photo-detector

SMF links up to 120km

Power Supply :+3.3V

Power consumption<1.8W

Temperature Range: 0~ 70°C

Application:

10GBASE-ZR/ZW Ethernet

SONET OC-192 / SDH

10G Fibre channel

General
HILINK's HLPG120D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The HLPG120D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.


Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λt 1530 1550 1565 nm
spectral width △λ 0.3 nm
Average Optical Power Pavg 0 +5 dBm 1
Optical Power OMA Poma -2.1 dBm
Laser Off Power Poff -30 dBm
Extinction Ratio ER 8.2 dB
Transmitter Dispersion Penalty TDP 3.0 dB 2
Relative Intensity Noise Rin -128 dB/Hz 3
Optical Return Loss Tolerance 21 dB
Receiver Section:
Center Wavelength λr 1260 1600 nm
Receiver Sensitivity Sen -24 dBm 4
Los Assert LOSA -34 - dBm
Los Dessert LOSD -24 dBm
Los Hysteresis LOSH 0.5 dB
Overload Sat -7 dBm 5
Receiver Reflectance Rrx -26 dB

Note:

1. Average power figures are informative only, per IEEE802.3ae.

2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.

3. 12dB reflection.

4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.

5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.

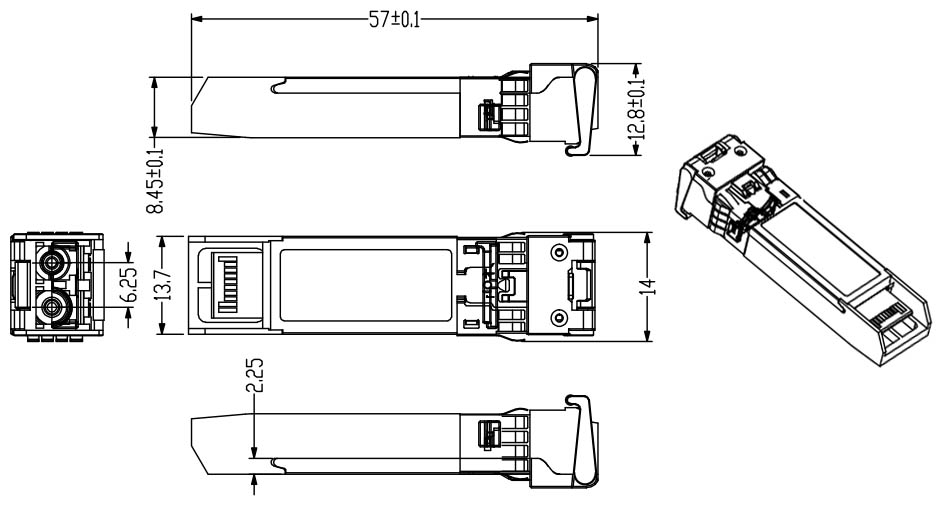

Mechanical Dimensions
120km SMF Optical Transceiver Module DDM SFP+ Duplex LC 1550nm
