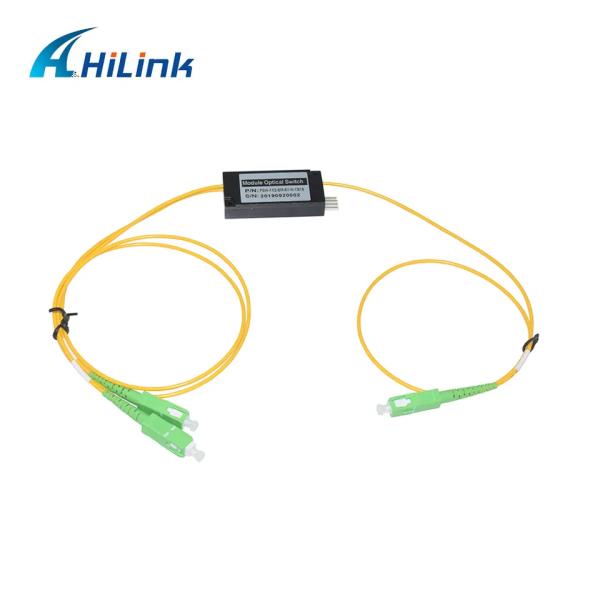

1x2 Single Mode Machannical Fiber Optical Switch 1310nm/1550nm With Customized Connector
1x2 Single Mode Machannical Fiber Optical Switch 1310nm/1550nm With Customized Connector
Specifications
Brand Name :
Hilink
Model Number :
HL-optic switch
Certification :
CE Rohs
Place of Origin :
China
MOQ :
1 pieces
Price :
Send Inquiry know latest price
Payment Terms :
T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability :
2000 Pieces/Week
Delivery Time :
5-8 working day
Packaging Details :
Plastic box+Carton
Product Name :
1x2 Single Mode 1310nm/1550nm Machannical Fiber Optical Switch
Operating wavelength :
1310/1550 nm
Condition :
Brand new
Logo :
Can be customized
Description

1x2 Single Mode 1310nm/1550nm Machannical Fiber Optical Switch with customized Connector

Description:

It’s a passive component used for OADM system, OXC, monitor system and experience.

Features:

Wide band operation

Low insertion loss

Low PDL

High cross talk

High stability and reliability

Path without epoxy

Application:

OADM

WAN

Laboratory

Monitory & detection

Performance:

Model 22-1315-A-A (Reference to model number)
Operating wavelength nm 1260~1620
wavelength nm 1310&1550
Insertion loss dB Typ:0.5 Max:1.0
Return loss dB SM≥50
Cross talk dB SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Voltage v 3.0 or 5.0
Operating life Time ≥107
Switch time ms ≤8
Power handling mW ≤500
Operating temperature ℃ -20~+70
Storage temperature ℃ -40~+85
Fiber color P1,P3 RED, P2,P4 Black
Size mm 27.0×12.6×8.0

1x2 Single Mode Machannical Fiber Optical Switch 1310nm/1550nm With Customized Connector

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
