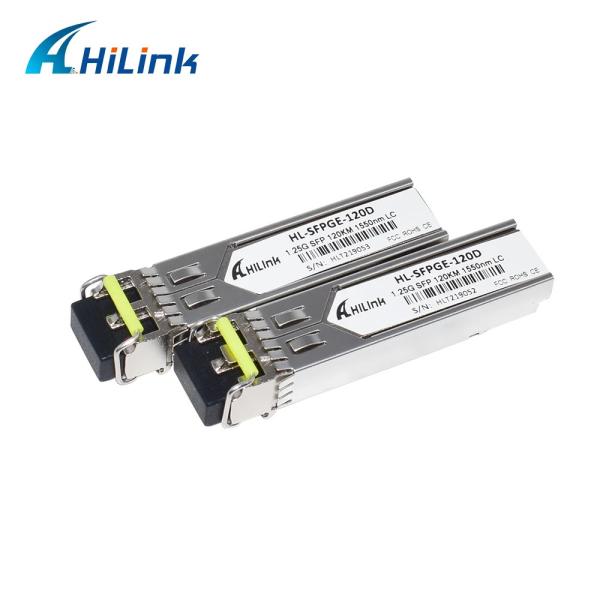

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module
1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module
1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module
1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module
Specifications
Brand Name :
HILINK
Model Number :
HL-1.25G-ZX-120
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500/week
Packaging Details :
Blister Packaging 10pcs/tray
Data Rate :
1.25G
Distance :
120KM
Connector :
LC
Warranty :
3 years
CE FCC :
Support
Brand :
Hilink/customized
Description

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module

Product Features

Hot-pluggable SFP footprint

1550nm DFB laser transmitter

APD Receiver

Duplex LC connector

Up to 120km on 9/125µm SMF

Metal enclosure for lower EMI

Single +3.3V power supply

Low power dissipation <700mW

Commercial operating temperature range: 0°C to +70°C


Applications

Gigabit Ethernet

1.06 Gb/s Fibre Channel


General

120km Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free.

It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.

B/D Transceiver Series:

GLC-BX-D20 SC 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI
GLC-BX-U20 SC 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI
GLC-BX-U40 SC 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI
GLC-BX-D40 SC 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI
GLC-BX-U70 SC 1.25G DFB Tx1490nm/Rx1550nm 60km LC/SC BIDI
GLC-BX-D70 SC 1.25G DFB Tx1550nm/Rx1490nm 60km LC/SC BIDI
GLC-BX-U80 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI
GLC-BX-D80 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI
GLC-BX-U120 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI
GLC-BX-D120 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module

Hilink specialize in wide range of sfp transceivers.
>SFP,SFP+,XFP,CWDM,DWDM
>CWDM/DWDM Mux Demux
>PLC Splitter,Media converter etc.
>Fiber optic cable(10g/40g aoc,dac and 40g/100g mpo cable)
