100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
Specifications
Brand Name :
HILINK
Model Number :
HL-QSFP28-100G-BXD80
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union.Paypal
Supply Ability :
100/PCS/MONTH
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Data Rate :
100GBASE Ethernet
Distance :
80KM
Wavelength1 :
1280nm/1300nm
Wavelength2 :
1300nm/1280nm
Connector :
Simplex LC Connector
package :
QSFP28
Description
100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
General:
HL-QSFP28-100G-UD-80 provides 100GBase-BX throughput up to 80km over single-mode fiber (SMF) using wavelengths of 1273.54, 1277.89, 1282.26, 1286.66nm- TX/1295.56, 1300.05, 1304.58, 1309.14nm-RX(1295.56, 1300.05, 1304.58, 1309.14nm- TX/1273.54, 1277.89, 1282.26, 1286.66nm-RX) via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, data center, and storage area networks applications.
Product Features:
4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA
Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Simplex LC connector·
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications:
Data Center Interconnect
100G Ethernet
Enterprise networking
100G BIDI Serial:
HL-QSFP28-100G-SRBD 100GBASE SRBD 850nm 100M LC
HL-QSFP28-100G-BXD10 100GBASE BIDI 1331/1271nm 10KM LC
HL-QSFP28-100G-BXU10 100GBASE BIDI 1271/1331nm 10KM LC
HL-QSFP28-100G-BXD20 100GBASE BIDI 1310/1280nm 20KM LC
HL-QSFP28-100G-BXU20 100GBASE BIDI 1280/1310nm 20KM LC
HL-QSFP28-100G-BXD30 100GBASE BIDI 1309/1304nm 30KM LC
HL-QSFP28-100G-BXU30 100GBASE BIDI 1304/1309nm 30KM LC
HL-QSFP28-100G-BXD40 100GBASE BIDI 1309/1304nm 40KM LC
HL-QSFP28-100G-BXU40 100GBASE BIDI 1304/1309nm 40KM LC
HL-QSFP28-100G-BXD80 100GBASE BIDI 1280/1300nm 80KM LC
HL-QSFP28-100G-BXU80 100GBASE BIDI 1300/1280nm 80KM LC

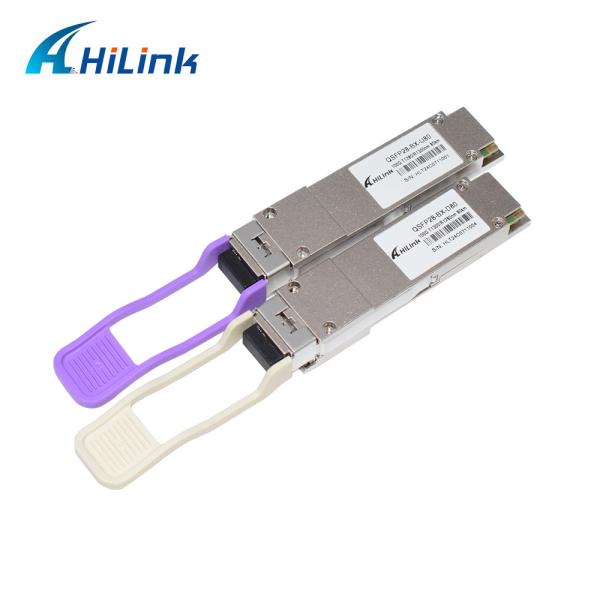

Product Picture Show:

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM

Mechanical Dimensions

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
