QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC
Specifications
Brand Name :
HILINK
Model Number :
HL-Q28-100G-BX10
Certification :
CE FCC RoHS
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100PCS Per Day
Delivery Time :
3-5 Working Days
Packaging Details :
Blister Packaging
Product Name :
100GBASE-BX10 QSFP28
Data Rate :
100GBASE
Wavelength Region :
1271nm/1331nm
Reach Distance :
10KM
Connector :
LC simplex
DDM :
Yes
Description

QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC

Item No. HL-Q28-100G-BX10 Vendor Name Hilink
Form Type QSFP28 Max Data Rate 100Gbps
Wavelength 1271/1331nm Max Cable Distance 10KM
Interface LC Simplex DOM Support Yes
Cable Type SMF Case Temperature Range 0 to 75°C


Features

  • Hot pluggable QSFP28 MSA form factor
  • Supports 53.125Gbaud Data rate aggregate bit rate
  • Up to 10km reach for G.652 SMF [with RS(528,514) FEC]
  • Single +3.3V power supply
  • Maximum power consumption 4.5V
  • Single LC receptacle
  • Compliant with the QSFP28 and 4WDM-20 MSA
  • Compatible with RoHS2.0
  • DDM function

Applications

  • Ethernet Links
  • 100G Ethernet

Compatibility

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

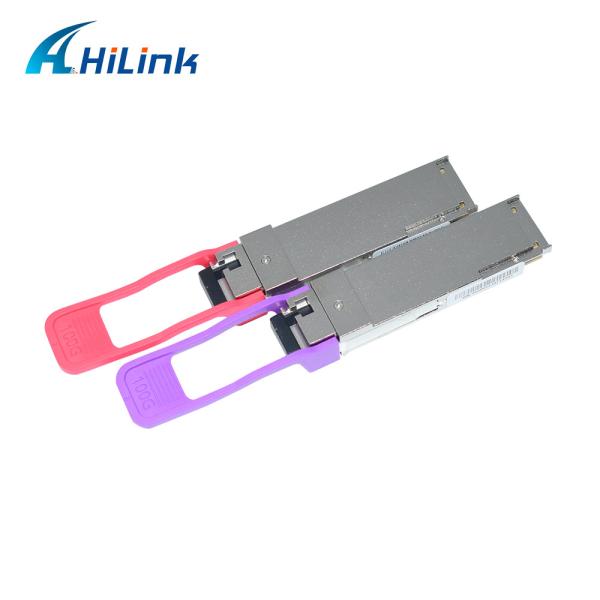

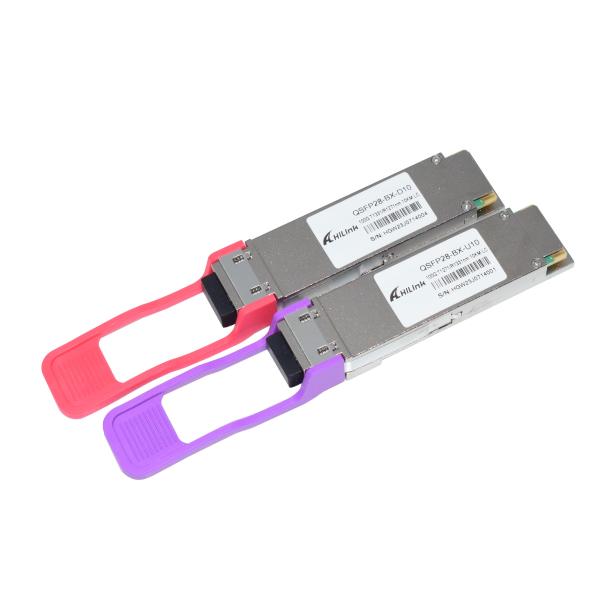

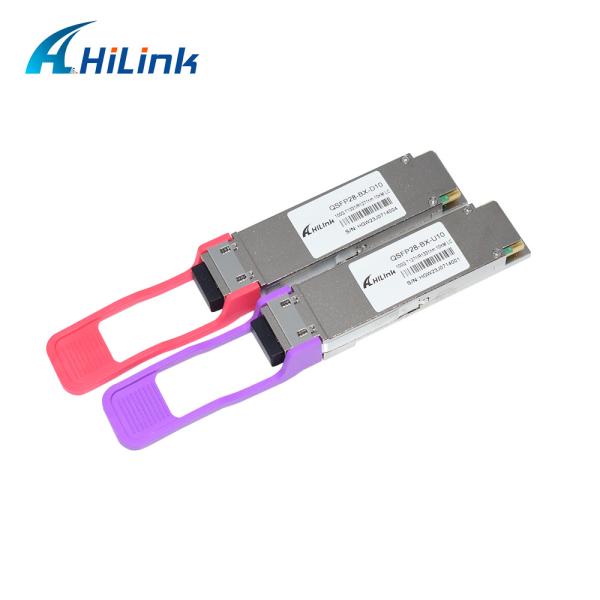

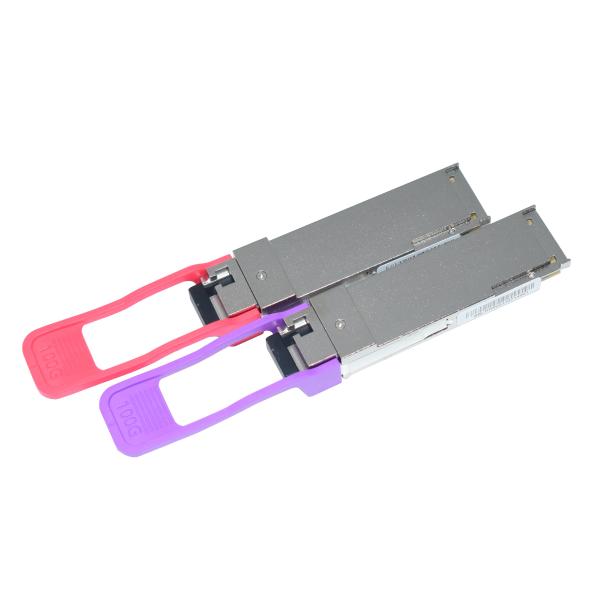

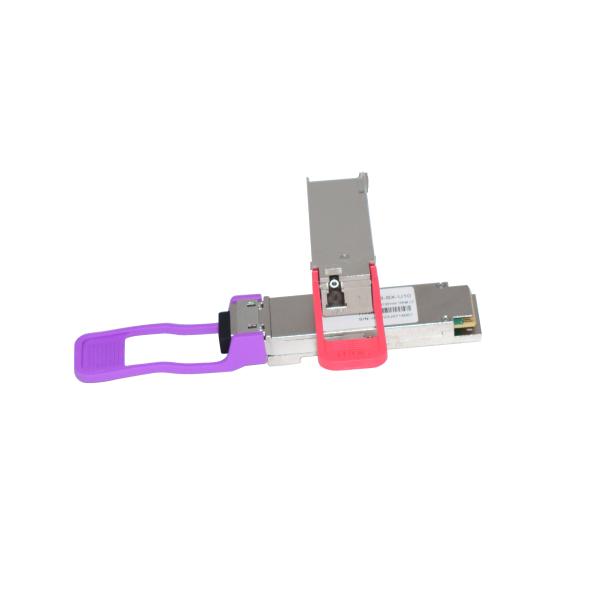

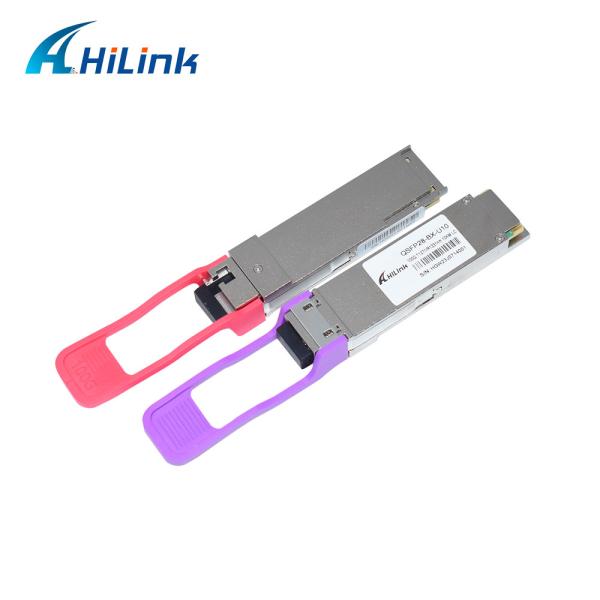

Details Photos


QSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LCQSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LCQSFP28 1271nm/1331nm LR 10KM BIDI Single Lambda Optical Transceiver Simplex LC


Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
