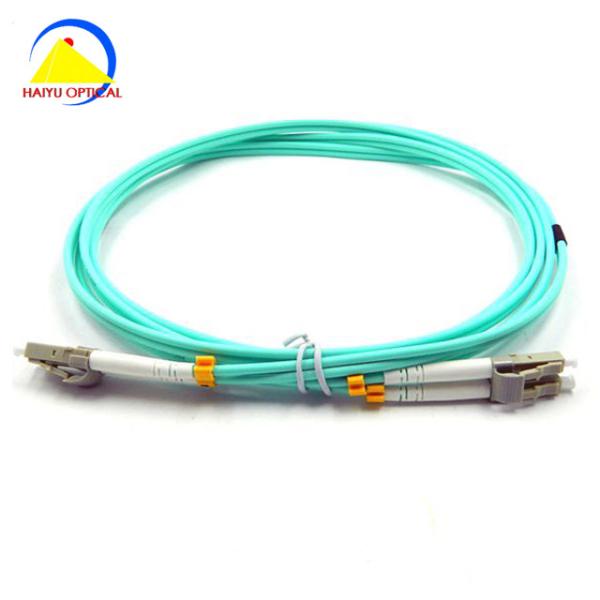

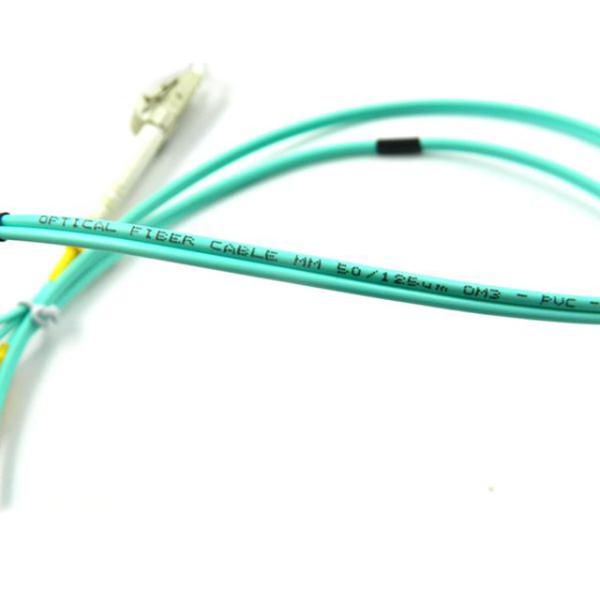

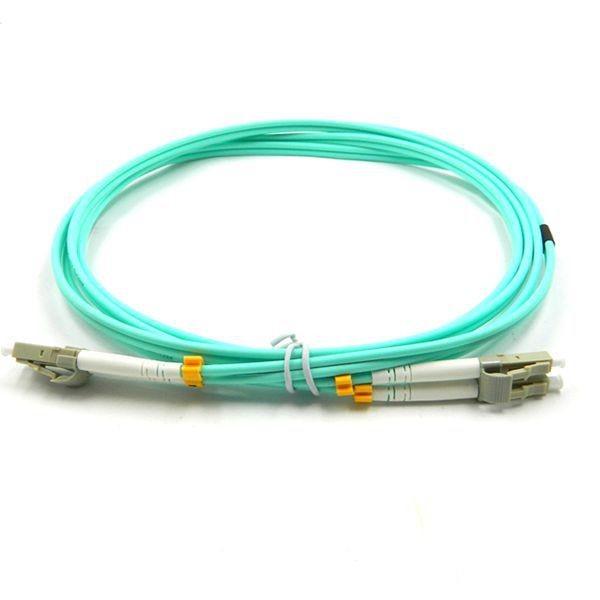

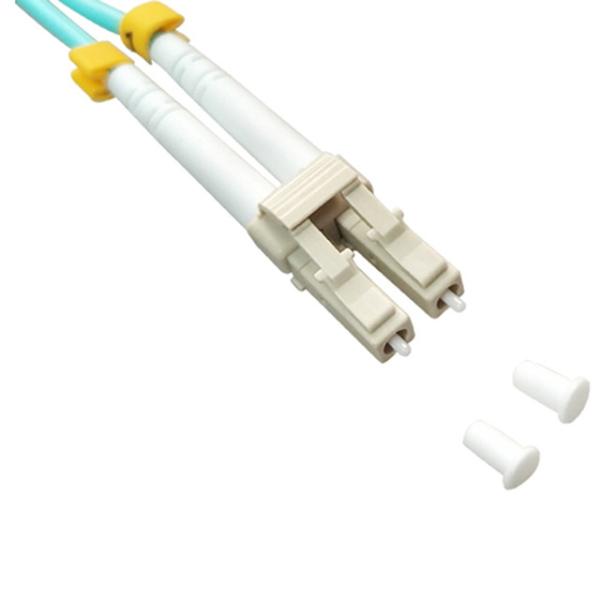

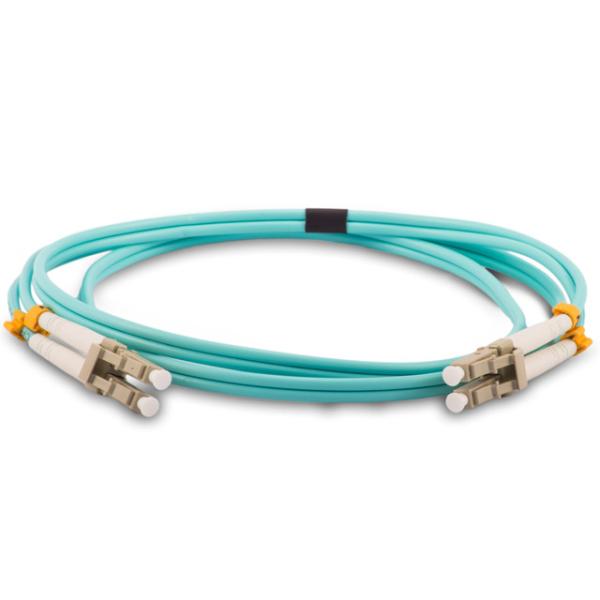

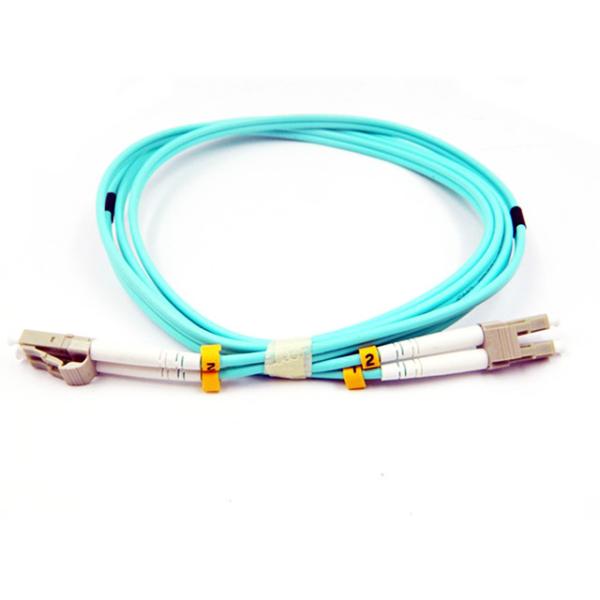

APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
APC Lc-Lc 850nm FTTX 3.0mm Fiber Optic Patch Cord
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
hyg-SC-0309
Supply Ability :
10000 Piece/Pieces per Day
Packaging Details :
carton or according to client requirement.
MOQ :
1 Piece/Pieces
Price :
$1.50 - $3.50 / Piece
Certification :
ISO9001, CE, ROHS
Type :
Fiber Optic Cable
Multi-Mode Fiber :
OM3
No. of Fiber :
2.
Use :
FTTX
Product name :
LC-LC OM3 Fiber Optic Patch Cord
Connector :
LC Dulplex
Polishing :
PC, UPC, APC
Fiber Mode :
OM3
Cable diameter :
3.0mm/2.0mm
Cable length :
1.3.5m or customized
Core number :
2 cores
Operation Wavelenghth(nm) :
850nm
Cable type :
PVC, LSZH
Operating Temperature :
-40℃+80℃
Port :
Shenzhen
Description

High Quality 2.0mm 3.0mm LC-LC CORNING YOFC Fiber Optic Patch Cord Supplier

product information

Specifications

Hello,

Thank you for viewing our page on Alibaba.com! We are a quality fiber optic cable manufacturer out of Shenzhen, China. Haiyu Optical holds ISO9001 certification and we are continually pushing the limits of increasing quality, outpacing our competitors. We have since grown to a team of dozens of individuals after our founding in 2008. We own and operate our own 1500 square meter factory in Shenzhen. Our products are all approved by UL, ROSH & CE.

Please reach out to us if you have any questions or if you would like to place an order. Thank you!

What is the parameter of those products?

Single-Mode Fiber

Multi-Mode Fiber

PC

UPC

APC

PC

Insertion Loss

≤0.3 dB

≤0.3 dB

≤0.3 dB

≤0.3 dB

Return Loss

≥40 dB

≥50 dB

≥60 dB

N/A

Operating Wavelength

1310nm & 1550nm

850nm & 1300 nm

Repeatability

≤0.1 dB

Working Temperature

-20~+60°C

Service Life

>1,000 mating cycles

Fiber Manufacturers:

Fiber Type

Manufacturer

Colors Available

9/125 μm

YOFC or Corning

Yellow

50/125 or 62.5/125 μm

YOFC or Corning

Orange

OM3 or OM4 50/125 μm

YOFC or Corning

Aqua

Optic Fiber Connector Options:

  • SC
  • LC
  • ST
  • FC
  • MTRJ
  • MU
  • SMA
  • E2000
  • D4
  • DIN
  • MPO
  • MTP

Fiber Optic Ferrule Polish Styles Options:

  • Physical Contact (PC)
  • Ultra Physical Contact (UPC)
  • Angled Physical Contact (APC)

Cable Jacket Options:

  • PVC - Polyvinyl Chloride
  • LSZH - Low Smoke Zero Halogen
  • OFNR- Optical fiber nonconductive riser
  • OFNP - Optical fiber nonconductive plenum
  • HYTREL

Ferrules:

  • We machine our ceramic ferrules with great precision using zircnium dioxide
  • Each ferrule has a beautiful end face polishing and full inspection prior to terminating to the cable
  • Low insertion loss and high return loss
  • High stability and repeat
  • In accordance with Telcordia GR-326-CORE Standards

Product Application:

  • Local Area Network (LAN)
  • Datacenter
  • Telecommunication Optic Transmission Network
  • Optical Access Network (OAN)
  • Active Device Termination
  • CATV
  • Fiber Optic Data Transmission (FODT)
