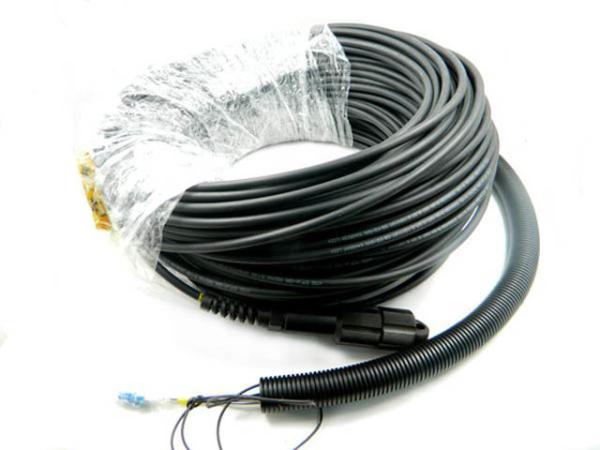

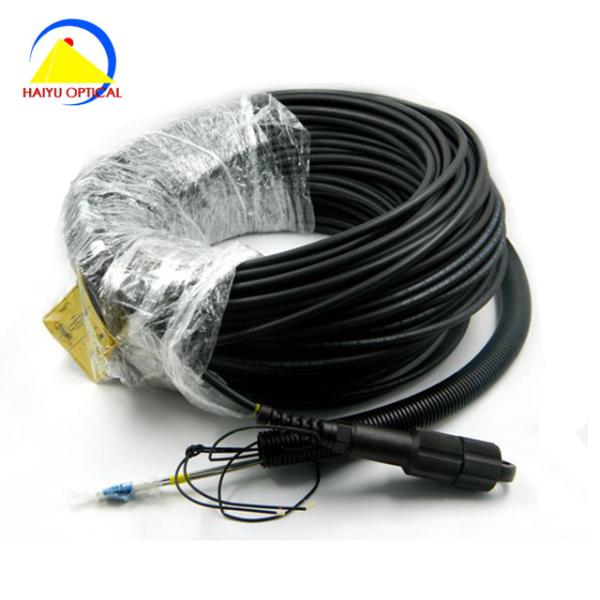

Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
HYG-H-569, 10G OM3 Fiber Patch cord
Supply Ability :
5000 Piece/Pieces per Week
Packaging Details :
carton
MOQ :
1 Piece/Pieces
Price :
$1.00 - $50.00 / Piece
Certification :
ISO9001, CE, ROHS
Fiber Type :
SM G652.D, SM G657A, OM1, OM2,
Fiber count :
Simplex, duplex, 4cores, 6 cores
Cable Diameter :
0.9mm, 1.6mm, 2.0mm, 2.4mm, or 3.0mm
Cabe Jacket :
PVC and LSZH optional
Connector Type :
SC, FC, LC, ST, MU, MTRJ, DIN, D4, etc
Polishing Type :
PC, UPC & APC optional
Insertion Loss :
PC, UPC<0.2dB, APC<0.3dB
Return Loss :
MM PC>35dB, SM UPC>55dB, SM APC
Brand :
HYG
Port :
Shenzhen
Description

Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable

Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable

Specifications

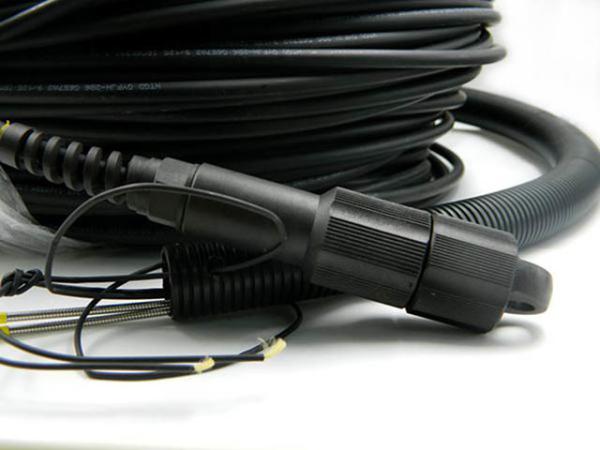

DLC Waterproof fiber optic patch cord is standard size
for Duplex LC Connectors, and the outer housing with
metal device;

Descriptions

PDLC Waterproof fiber patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.

Features

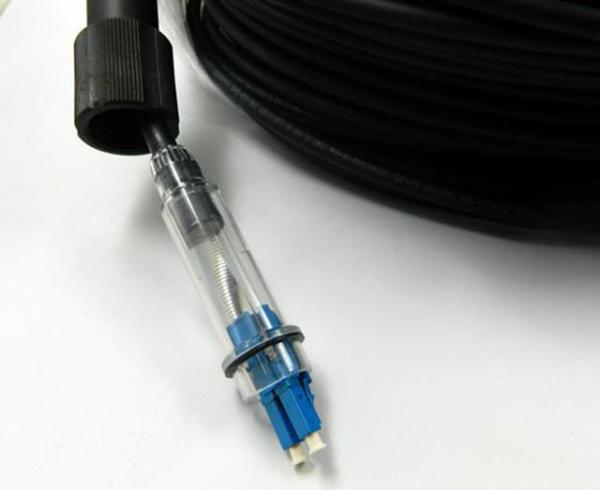

1. Standard Duplex LC connector, well connected with standard LC adaptor

2. Available Single mode and Multimode

3. IP678protection, salt-mist proof, humidity proof, dust proof

4. Aluminum housing, high shock and vibration

5. Broad temperature range and wide range of indoor and outdoor cables

6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

7. Easy Operation, reliable and cost-effective installation

Applications

l 3G 4G base station used

l Aerospace & Defence

l Equipment diagnosis

l FO sensor

l FTTA ,FTTP, FTTX,WIMAX

l BBU, RRU, RRH, LTE

Functional Parameter

Item

Description

Standard

Cable Model

GYFJH-2A1

Number Optic-cable Core

2

Weight Kg/km

45.0

Outside Dia. mm

Φ7.0±0.2

Outer Sheath

material

LSZH

YD/T 1113-2001

color

BLACK

thickness

1mm

Tight buffer

material

FRP

Dia. mm

Φ1.0±0.1

Subunit

Quantity(pcs)

2

Sheath Dia.

Φ2±0.1mm

Sheath Material & Color

LSZH & yellow

Reinforced core

aramid fiber

Mark Unit

Differ A,B,C and D fiber within 10mm

GB/T 6995.2

Fiber core

Fiber Type

G.652D

sheath color

white

Sheath material

LSZH

Out-Dia fiber for Tight layer

0.90±0.05 mm

Fiber specification

9/125(G652D)

Allowable Tension

Short term ≥500N

Long term ≥300N

inflaming retarding Class

Confirm to IEC60332-3C

Mini Bending radius

10D

Fiber Cable Printing

Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date

Working life

≥25years

*all materials confirm to RoHS

Packaging & Shipping

Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable

After-Sales Service

Optical Cable Assembly DLC/PC,DLC/PC,Multimode,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch Cable

OEM & ODM is accepted, any questions welcome to contact us.

Sales Manager: Joyce Tan

Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
