FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
hyg-converter
Certification :
ISO9001:2008
Supply Ability :
500 Pair/Pairs per Week
Packaging Details :
Regular export carton package or as customers' request
MOQ :
50 Pair/Pairs
Price :
$18.00 - $38.00 / Pair
wavelength :
850nm, 1310nm, 1550nm
Name :
Fiber Media Converter
Rate :
10/100/1000M
Connector :
SC,LC,FC,ST
fiber mode :
Single mode, Multi mode
Cores :
Sinplex, Duplex
Transmission length :
550m, 2Km, 10Km, 40Km, etc.
Power :
External&Internal
Classcification :
Cards, Rack mount
Port :
Shenzhen
Description

FTTH 120km Fiber Converter fiber optic to coaxial converter

Features:

1, Full compatible with IEEE802.3IEEE802.3u standard

2, Up to 100km distance on single mode optical port

3, Up to 9278 bytes package forwarded, transmit 802.1Q VLAN TAG protocol transparently

4, optical port supports Dual-strand, single-strand and CWDM etc.

5, Ethernet copper port 10/100/1000Mbps speed and half/full duplex mode Auto-negotiate

6, Ethernet copper port supports MDI/MDI-X auto sensing

7, The number of Ethernet copper ports can extend to 4ports

8, Backup optical ports optional, SFP device optional

9, IEEE802.3af PoE (for PD)optical

10, Standalones and chassis Modules optional, Chassis support cascade link up to 4 numbers for management

Software Feature

11, Support Console, WEB and SNMP management

12, View & configure the working status of local chassis and remote standalone device.including connection status, speed, half/full duplex mode, port status

13, Support rate limit with step of 8Mbps in 1000Mbps speeed,0.8Mbps in 100Mbps speed,and 0.08Mbps in 10Mbps speed.

Product Information:

Band Width RJ 45 Port:10/100Mbps Optical Port: 155Mbps
Standard Protocol IEEE802.3 10 Base-T standard
IEEE802.3u 10/100Base-TX/FX standard
IEEE 802.3X standard.
Connectors UTP RJ-45 SC/ST/FC Fiber connector
Operation Mode Full /Half duplex mode
Power Supply External 5V DC 1A
Internal AC220V/50Hz
Power Consumption ≤5W
Environmental Parameters Work Temperature -30°C~+65°C
Storage Temperature -40°C~85°C
Humidity 5%~90%
TP Cable Cat5 UTP cable
Fiber Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
Dimensions(mm) External power supply 95*70*26
Internal power supply 115x110x30
Product Model Transceiver Type Wave Length Distance Optical Power Sensibility
HYG-S1-20 SM 1310nm 20 km -6~-12 dbm ≤-24 dBm
HYG-S1-40 SM 1310nm 40 km -3~-8 dbm ≤-24 dBm
HYG-S2-60 SM 1550nm 60 km -6~-0 dbm ≤-24 dBm
HYG-S3-5 MM 850nm 500 m -6~-12 dbm ≤-24 dBm

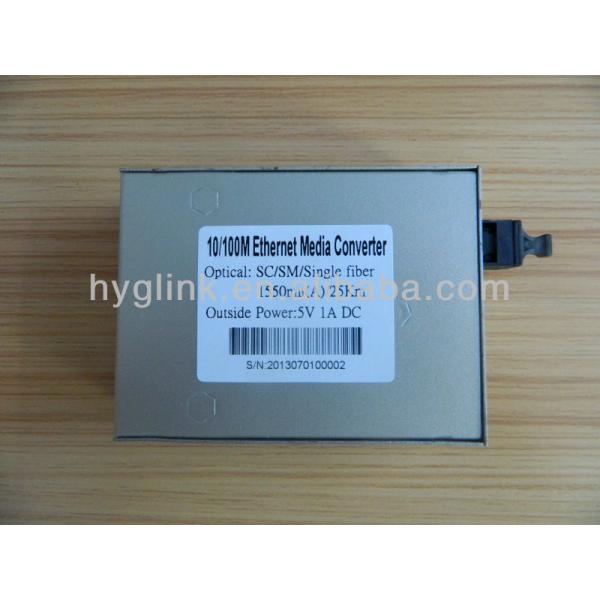

Fiber converter pictures:

FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

Applications:

1,Optical fiber communications systems;

2,Optical fiber access network;

3,Optical fiber CATV.

4,Optical fiber test equipments;

5,Optical fiber data communications;

6,LAN

Factoy photos:

FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

Company Information

FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

After-Sales Service

FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

OEM & ODM is accepted, any questions welcome to contact us.

Sales Manager: Joyce Tan

Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
