Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
hyg-FCR-0051
Insertion loss :
UPC<0.2dB, APC<0.3dB
Cable applicable :
3.1 x 2.0 mm drop cable
Polishing :
APC, UPC
Name :
Plastic fast connector
Material :
Plastic or steel
Application :
FTTH,LAN,PON&Optical CATV
Mode :
SM, MM
Certificate :
ISO9000,ROSH
Packaging :
Plastic bags
Type :
Fiber optic components
Supply Ability :
7000 Piece/Pieces per Week
Packaging Details :
5pcs in a plastic bags or as clients requirement.
Port :
Shenzhen
MOQ :
100 Piece/Pieces
Price :
$0.50 - $3.00 / Piece
Description

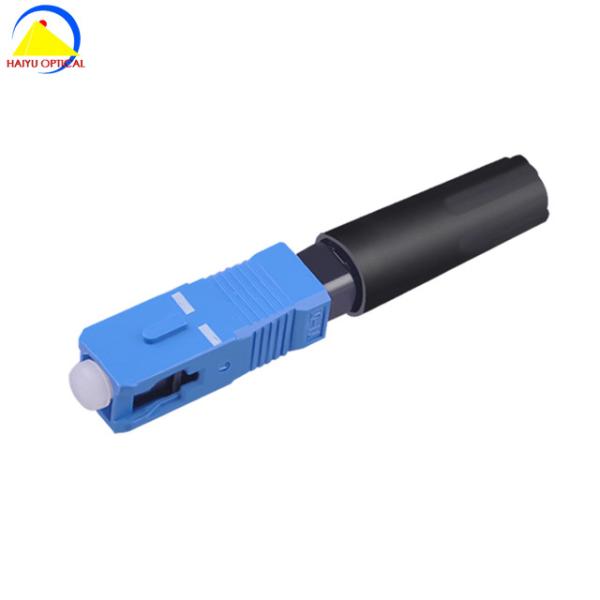

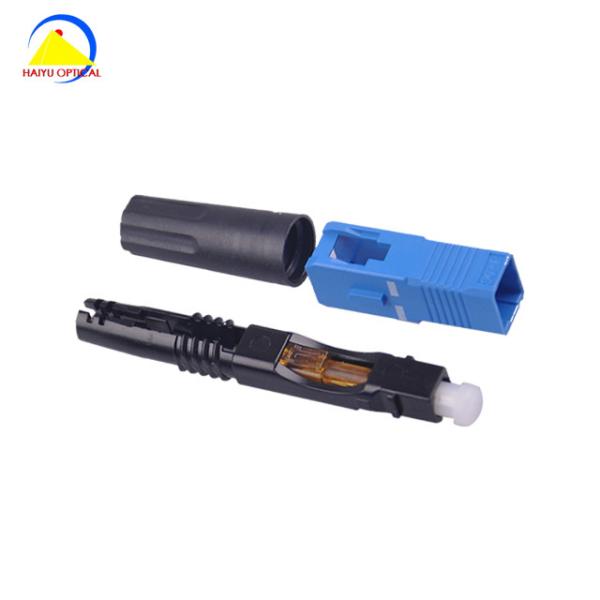

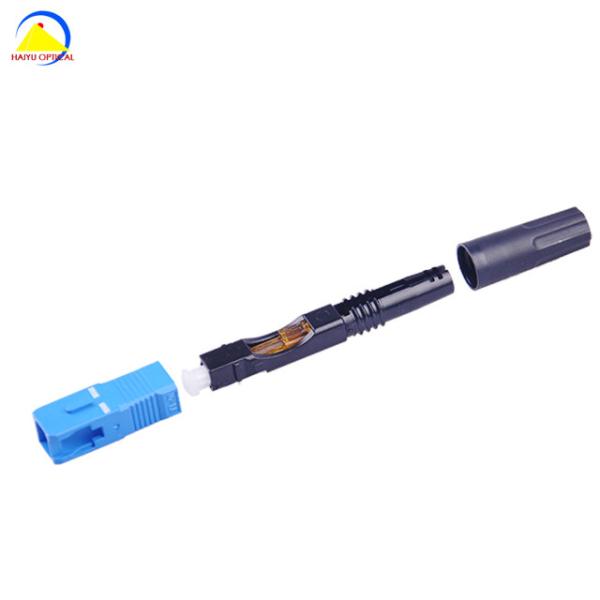

Fiber Optic Fast Connector designed for FTTH

Plastic fast connector:

1. Easy to operate can save time

2. 100% qualified, reduce the maintenance cost.

3. Easy to assembling with mechanical splice and no polishing

4. High stablity ,low insertion loss ,high return loss.

Plastic fast connector parameters:

ITEM

Technical Parameters

Application

FTTH indoor&outdoor

Optical fiber diameter

125μm ( 657A & 657B )

Tight buffer diameter

250μm

Fiber mode

Single mode

Operation time

About 100s(no fiber cut)

Insertion loss

≤ 0.2dB(1310nm & 1550nm)

Return loss

≤ -50dB

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

On-line tensile strength (20 N)

Δ IL ≤ 0.5dB Δ RL ≤ 5dB

Mechanical durability (500 times)

Δ IL ≤ 0.5dB Δ RL ≤ 5dB

Drop-off test (drop-off height 4m,

once per direction, totally 3 times)

Δ IL ≤ 0.5dB Δ RL ≤ 5dB

Using temperature

-40~+75°C

Plastic fast connector application:

· Premise environments

· Connections at the desk for LAN environments

· Patch panels

· Direct equipment termination

· Fiber to the Subscriber (FTTx) applications

· Repair/replacement requirements

· Equipment test leads

Product tags

fiber optic connector sc

,

upc fiber optic connector

,

sc fiber optic connector
