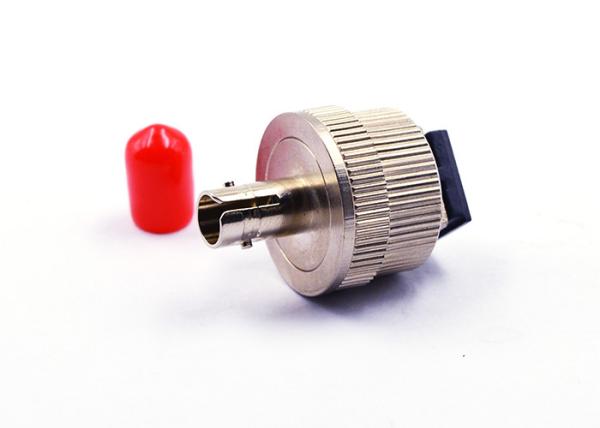

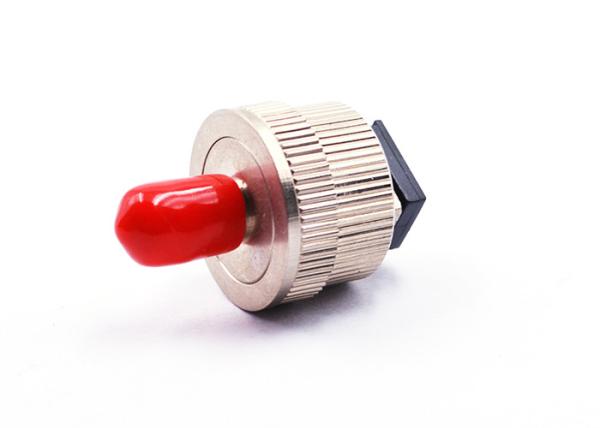

FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-ATU-FC-SC-008
Certification :
CE, ISO9001, Rohs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability :
2000pcs per day
Delivery Time :
2-3 working days
Packaging Details :
each packed in pe bag, 400-600pcs/carton
Product name :
Fiber Optic Variable Attenuator
Connector type :
FC, SC, ST, LC
Fiber type :
Singlemode, Multimode
Application :
FTTH FTTB FTTX Network,CATV
Material :
Metal
Attenuation level range :
0~30dB
Description

FC to SC Hybrid Fiber Optic Variable Attenuator 0 - 30 dB

Haiyu Optical offers a wide range of Fiber Optic Attenuators. Available for use in Single-mode 9/125, Multimode 50/125 and Multimode 62.5/125 applications. Our Male to Female Buildout Optical Attenuation are available in all fiber modes with LC, LC/APC SC, SC/APC, FC, FC/APC and ST types.

The Air-Gap Variable Attenuator has a ceramic alignment sleeve. Can be used on both multimode and singlemode applications. Set and adjust the increase of attenuation level to desired “level”. Can be used to replace mating sleeve at the patch panel, enabling variable attenuation levels to be introduced to the system. Attenuation range is 0dB to 30dB.

Parameters:

Item Unit Parameter
Operating Wavelength Nm SM:1310/1550nm MM: 850 /1300nm
Attenuation Range dB 1-30dB
Return Loss dB PC:≥50 UPC: ≥55 APC: ≥60
Attenuation Tolerance dB ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Working Temperature °C -25°C~+75°C
Storage Temperature °C -40°C~+ 85°C

Features:

  • High precision attenuation value (ensure 100% tested)
  • Precision control of attenuation range
  • Wide attenuation range
  • Precision ceramic ferrule
  • Plastic or metal housing material
  • FC, SC, ST, LC … optional

Product application:

  • Optical Fiber Communication Network
  • Passive optical networks
  • Data Transmission Network
  • CATV Fiber Optic Sensor
  • Local Area Networks(LANs)
  • Optic Instrumentation
  • Testing instrumentation

FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network

FC To SC Hybrid Fiber Optic Attenuator Metal Material For FTTH Network
