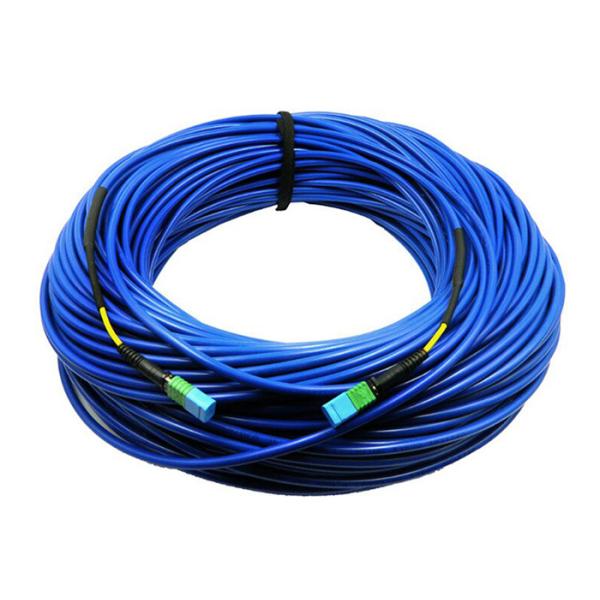

Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-MPO-MPO-Armored-SM-12F-20M
Certification :
Rohs,CE, ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs per day
Delivery Time :
2-3 working days
Packaging Details :
polybag+carton or customized
Connector :
MTP MPO Singlemode
Fiber count :
12 Fibre
Cable type :
Singlemode LSZH
Color :
Blue, Customized
Insertion loss :
≤0.35 dB
Return loss :
>= 55dB
Application :
FTTH FTTB FTTX Network
Product name :
Fiber Optical 12Core MTP/MPO Patch cord
Description

Outdoor 12 Fibre Singlemode Armored MTP MPO Fiber Optic Patch Cord

Specification:

Parameters Min. Typical Max. Unit.
Operating Wavelength Single Mode 1310 1620 nm
Multi-mode 850 1310
MPO Insertion Loss Single Mode 0.6 dB
Single Mode Low Loss 0.3 0.35
Multi-mode 0.75

Single Fiber Insertion Loss

(Fan-out side)

 Single Mode 0.2 dB
Single Mode Low Loss 0.3
Multi-mode 0.3
Return Loss Single Mode 50 dB
Single Mode Low Loss 60
Multi-mode 30
Operating Temperature - 20 + 70 °C

Description:

The MPO Armored series of fiber cable assemblies have incorporated steel into their construction, increasing their overall resistance to physical damage.

The Armored jacket surrounds the delicate internal fibers with a steel braid, allowing for a balance between flexibility and protection.

An additional layer of Kevlar rests underneath the steel braid, further protecting the optical fibers from tampering or environmental damage.

The thin yet dependable nature of the Armored series allows the installation of fiber optic cabling in otherwise uninhabitable areas such as those in light to medium indoor and outdoor areas where fiber installations may often fail.

Features:

  • Improves and simplifies fiber routing
  • Decreases fiber management space
  • OEM or customized for special applications
  • Low insertion loss and reflectance
  • High Density

Applications:

  • Optical System Access Network
  • Telecommunications networks
  • Broadband/CATV networks
  • Data communications networks, including high-bandwidth equipment

Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord
