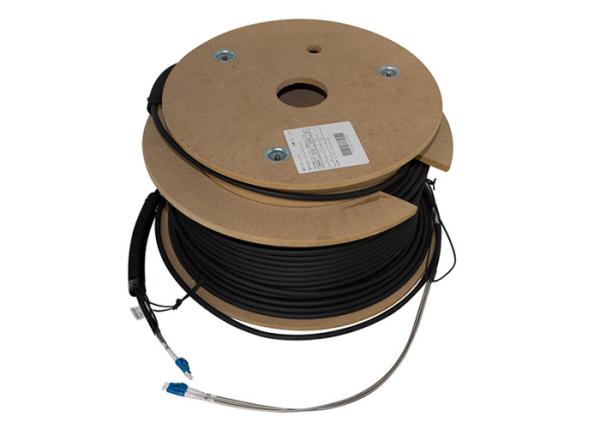

FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-FTTA-DLC-MM-01
Certification :
CE, ROHS, ISO9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per day
Delivery Time :
3-5 working days
Packaging Details :
packed with foam and carton
Application :
Data Center/FTTX/LAN and WAN/CATV Network/Telecommunications Network
Length :
5m, 10m 20m, 30m, 50m, 70m, 100m
Fiber type :
single mode/multi mode
Fiber count :
2 Cores
Name :
Outdoor Cable Assembly
Jacket :
PVC/LSZH
Connector :
Duplex LC
Temperature :
-40°C to +85°C
Description

FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores

Specification:

Item
Description
Standard
Cable Model
GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
Number Optic-cable Core
2
Weight Kg/km
45.0
Outside Dia. mm
Φ7.0±0.2
Outer Sheath
material
LSZH
YD/T 1113-2001
color
BLACK
thickness
1mm
Tight buffer
material
FRP
Dia. mm
Φ1.0±0.1
Subunit
Quantity(pcs)
2
Sheath Dia.
Φ2±0.1mm
Sheath Material & Color
LSZH & yellow
Reinforced core
aramid fiber
Mark Unit
Differ A,B,C and D fiber within 10mm
GB/T 6995.2
Fiber core
Fiber Type
G.652D
sheath color
white
Sheath material
LSZH
Out-Dia fiber for Tight layer
0.90±0.05 mm
Fiber specification
9/125(G652D)
Allowable Tension
Short term ≥500N
Long term ≥300N
inflaming retarding Class
Confirm to IEC60332-3C
Mini Bending radius
10D
Fiber Cable Printing
Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
Working life
≥25years

*all materials confirm to RoHS

Description:

With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, DLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.

Features:

* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
FTTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

FTTA Outdoor Optical Cable Assembly DLC Multimode GYFJH 2A1a 7MM 2 Cores
