SC APC Fiber Optic Adapter LC MTRJ Zirconia Plastic 0.2dB With Internal Shutter
SC APC Fiber Optic Adapter LC MTRJ Zirconia Plastic 0.2dB With Internal Shutter
SC APC Fiber Optic Adapter LC MTRJ Zirconia Plastic 0.2dB With Internal Shutter
SC APC Fiber Optic Adapter LC MTRJ Zirconia Plastic 0.2dB With Internal Shutter
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-ADP-SC-010
Certification :
CE, ISO9001, Rohs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000pcs per day
Delivery Time :
2-3 working days
Packaging Details :
Packed in Blister box and carton
Product name :
SC Internal Shutter Adapter
Color :
Blue & Green
Insertion loss :
≤0.2dB
Connector type :
SC
Model :
Singlemode
Housing material :
Plastic
Description

SC/UPC SC/APC Singlemode SC Fiber Optic Adapter with Internal Shutter

This SC Adapter with Internal Shutter is designed to cover the entire coupler hole. These unique adapters virtually eliminate eye exposure to lasers and provide maximum protection from dust and other contaminants. The swing shutter automatically opens as the C connector is inserted, and closes as it is extracted.

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.

SC Internal Shutter Adapter Specifications:

Item SC Internal Shutter Adapter
Mode Singlemode Multimode
Housing Color APC=Green,PC=Blue Beige / Aqua / Violet
Main Body Material Plastic
Sleeve Zirconia
Typical Insertion Loss(dB) ≦ 0.15dB
Durability < 0.2dB change, 500mating
Operating Temp. -40℃ ~ +75℃
Storage Temp. -40℃ ~ +85℃

SC Internal Shutter Adapter Features:

  • Duplex and Quad model available
  • Low insertion loss
  • Easy installation
  • Diversity - Blue, Green, Beige, Aqua. Black and Magenta are available under request

SC Internal Shutter Adapter Application:

  • Telecommunication networks
  • Local Area Networks (LANs)
  • CATV
  • Industrial, military and medical

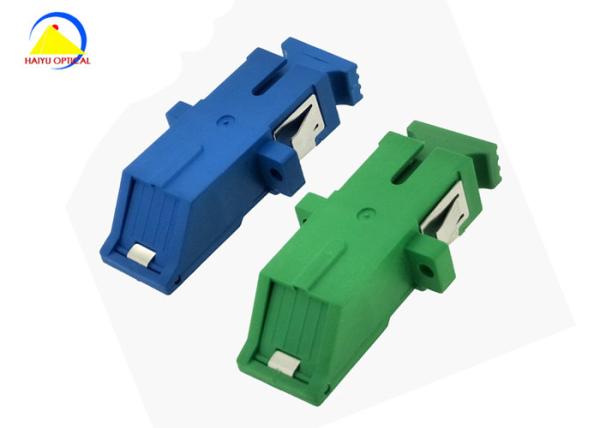

Internal Shutter Adapter Pictures:

SC APC Fiber Optic Adapter LC MTRJ Zirconia Plastic 0.2dB With Internal Shutter
