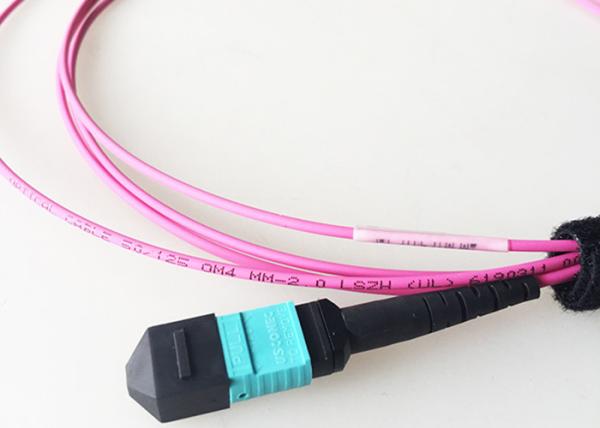

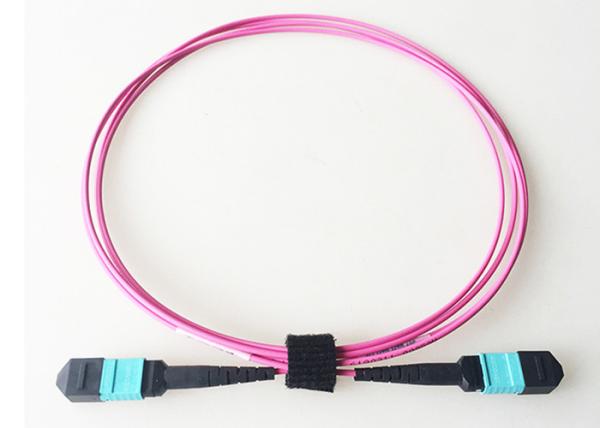

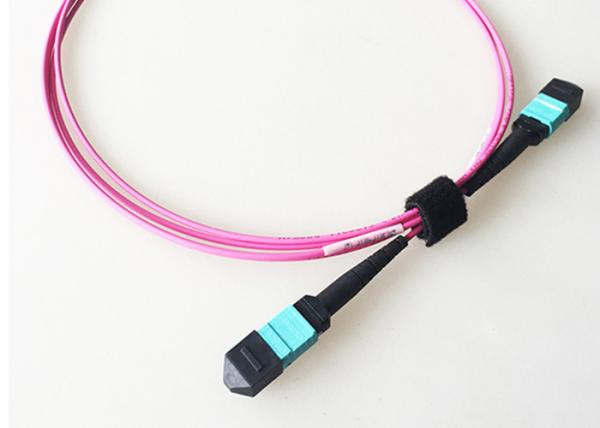

50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
50um MPO MTP Optical Fiber Cable 40G OM4 Multimode Violet Color
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-MPO-OM4-12F-2M
Certification :
Rohs,CE, ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs per day
Delivery Time :
2-3 working days
Packaging Details :
polybag+carton or customized
Name :
MPO MTP Fiber Optic Patch Cord
Fiber count :
12 cores
Connector type :
MPO, MTP
Color :
Violet
Insertion loss :
≤0.35 dB
Return loss :
>= 35dB
Description

40G OM4 Multimode 50um MPO MTP Fiber Optic Patch Cord Supplier


MPO MTP Fiber Optic Patch Cord Description :

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.


MPO MTP Fiber Optic Patch Cord Specification:

Parameters Min. Typical Max. Unit.
Operating Wavelength Single Mode 1310 1620 nm
Multi-mode 850 1310
MPO Insertion Loss Single Mode 0.6 dB
Single Mode Low Loss 0.3 0.35
Multi-mode 0.75

Single Fiber Insertion Loss
(Fan-out side)

 Single Mode 0.2 dB
Single Mode Low Loss 0.3
Multi-mode 0.3
Return Loss Single Mode 50 dB
Single Mode Low Loss 60
Multi-mode 30
Operating Temperature - 20 + 70 °C
Fiber Type

SM ITU-T G652 and IEC 60793-2-50 B1.3
SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A
OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2
Cable Jacket Type Ribbon / Fan-out LSZH
Cable Jacket Color Yellow G652 and G657 Single mode fiber
Orange OM2 Multi-mode fiber
Aqua OM3 fiber
Flammability Rating IEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.

MPO MTP Fiber Optic Patch Cord Features:

  • Decreases fiber management space
  • OEM or customized for special applications
  • Low insertion loss and reflectance
  • High Density

MPO MTP Fiber Optic Patch Cord Applications:

  • Optical fiber access network;
  • Optical fiber CATV.
  • Optical fiber test equipments;
  • Optical fiber data communications;
  • LAN
