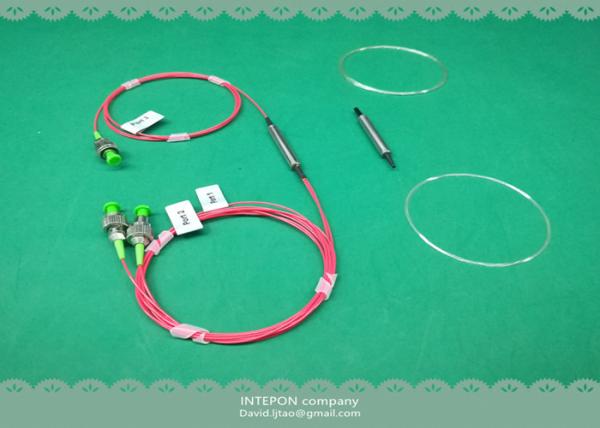

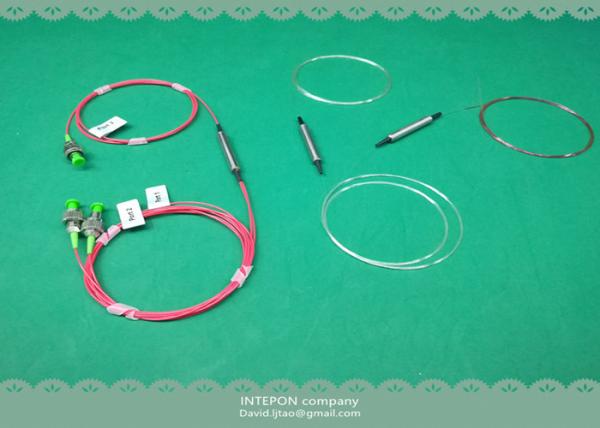

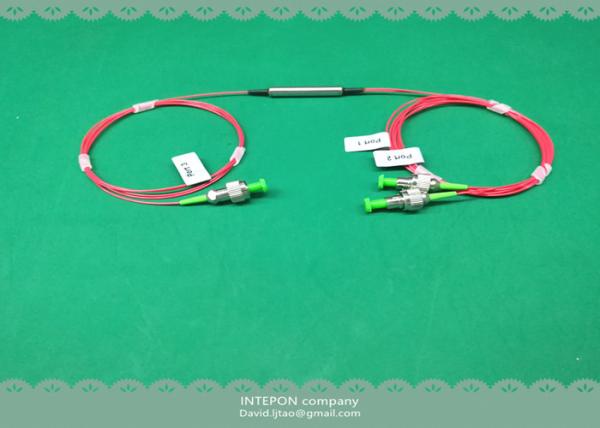

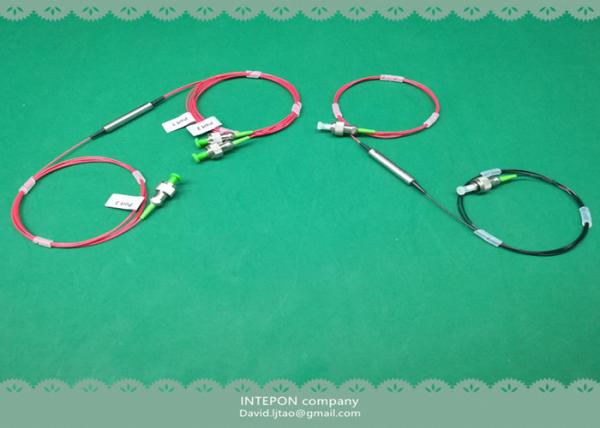

PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.
Specifications
Brand Name :
INTEPON
Model Number :
PM circulator
Certification :
RoHs, ISO9001:2015
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
200~300pcs per month
Packaging Details :
5.5x35mm
Wavelength :
1064nm
Type :
1x2 port
Stage :
single
Isolation :
25dB
Insertion loss :
1.8dB
Description

PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.

The 1064nm PM circulator is produced with the panda fiber which has the two axes. You can choose the slow or fast axis as your working axis according to your system. It has 3 ports, port 1 is input, port 2 can be used for transmitting the light signal and input new signal with high isolation.

Features

Type: 1x2 port

Stage : single stage

Insertion loss : ≤ 1.8dB

Isolation: ≥25dB

Fiber type: panda fiber

Applications

Fiber laser

Optical Transmitters & Transceivers

Fiber Amplifiers

Fiber Sensors

Specifications
Parameters Unit Specification
Operating wavelength Range nm 1064
Insertion loss (1-2, 2-3 @ 23 C ) dB ≤1.8
Extinction Ratio dB ≥20dB
Polarization Mode Dispersion (PMD) dB ≤0.1
Isolation (2-1, 3-2 @ 23 C) dB ≥25
Directivity dB ≥50
Return Loss dB ≥50
Power handling(mW) mW ≤500
Pigtail length m 0.8m
Port color - 0.8m
Tensile Load N ≤5
Operating Temperature C -5 to +70
Storage Temperature C -40 to +85
Remark
* Above specifications are tested without connector at room temperature
With connector, 0.3dB higher for IL & 5dB lower for RL per connector.

PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.

PM circulator, 1064nm, 1x2 port, single stage, 25dB isolation, 1.8dB insertion loss.

Q&A:

Q: What's your Payment terms?

A: We accept TT & Western Union for payment.

Q: How to order a sample?

A: You can contact us directly and tell us your requirements on any of our products.

Q: Could you print our company logo or design on the products?

A: Yes, we can accept your need but we will share the charge with you.

Q: If we decide to move forward with our order what is the next step?

A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.

Q: What is your normal production lead time for a first order and then for repeat orders?

A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.

Q: Do you have warranty policy?

A: Yes, we have. We provide 12 months maintenance warranty.
