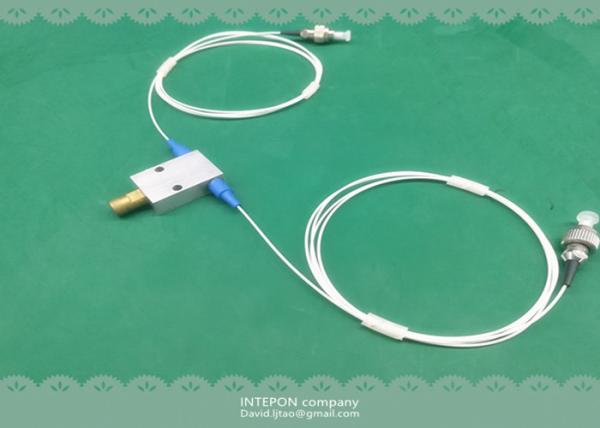

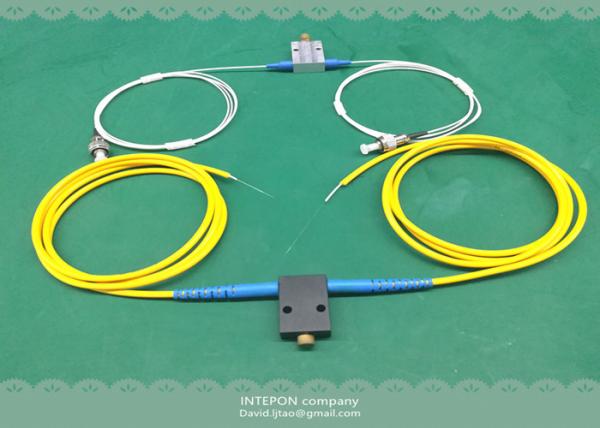

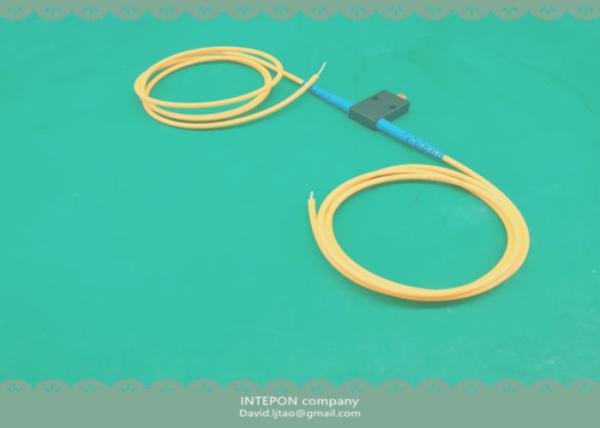

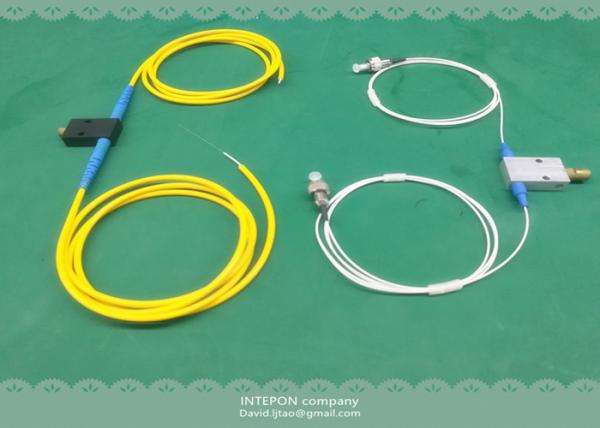

Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.
Specifications
Brand Name :
INTEPON
Model Number :
VOA
Certification :
RoHs, ISO9001:2015
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
800~1000pcs per month
Wavelength :
1550
Type :
1x1 port
Insertion loss :
≤1.0dB
Max attenuation :
60dB
Compact size :
20.8x8.8x5mm
Pigtail type :
3.0mm loose tube
Fiber type :
62.5/125 multi mode fiber
Description

Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.

The in-line variable attenuator is based on collimator with the screw by hand which can attenuate the light in the optical path. It's widely used for protecting the network system.

It has smaller body size than standard type so that you can use it freely.

Features

Structure: 1x1 port

Insertion loss : ≤ 1.0dB

Max attenuation: 60dB

High return loss: return loss ≥50dB for APC connector type

Applications

Protecting the light source

Optical amplifier

Optical transmission system

Data center

Specifications
Parameters Unit Specification
Operating wavelength Range nm 1550
Insertion loss (23 C ) dB ≤1.0
Polarization Dependent Loss (PDL) dB <0.15 (<15dB attenuation)
<0.25 (16~50dB attenuation)
Polarization Mode Dispersion (PMD) dB ≤0.1
Max attenuation dB 60
Pigtail type / 2.0mm or 3.0mm loose tube
Return Loss dB ≥50 for APC type, ＞45 for UPC type
Power handling(mW) mW ≤500
Pigtail length m 1m or other lengths
Dimensions mm 20.8x8.8x5
Tensile Load N ≤5
Operating Temperature C -5 to +70
Storage Temperature C -40 to +85
Remark
* Above specifications are tested without connector at room temperature
With connector, 0.3dB higher for IL & 5dB lower for RL per connector.

Fiber attenuator,1550nm, 62.5/125um fiber, 20.8x8.8x5mm, 1~60dB attenuation.

Q&A:

Q: What's your Payment terms?

A: We accept TT & Western Union for payment.

Q: How to order a sample?

A: You can contact us directly and tell us your requirements on any of our products.

Q: Could you print our company logo or design on the products?

A: Yes, we can accept your need but we will share the charge with you.

Q: If we decide to move forward with our order what is the next step?

A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.

Q: What is your normal production lead time for a first order and then for repeat orders?

A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.

Q: Do you have warranty policy?

A: Yes, we have. We provide 12 months maintenance warranty.
